Robotic Sheet Metal Press Brake
Request a Quote
Robotic Bending Solutions
ACCURL press brakes can be used in a robotic cell, and either completely robotic, or simultaneously with a robot and a human operator alternating usage of the CNC machines.
Thanks to the ACCURL bending robot and automatic loading/unloading devices, the cell with two levels of automation - process and operation - is a reliable solution for unattended production, even at night.
All risks associated with part handling during bending are faced by the robot and not by the operator.
Specifications
| Model | JPR16 | JBR30 | JBR110 |
| Instructions | Fast, high dynamics | Flexible, suited for small-sized part handling | Versatile, suited for medium-sized part handling |
| Payload | 16 Kgs | 30 Kgs | 110 Kgs |
| Max. range of action | 1610mm | 2230mm | 3100mm |
Connections
The ACCURL Robotic bending cell system can be equipped with different types of loading and unloading connections, depending on the client's production requirements.
- Loader from a pre-centred pack.
- Loader from a Cartesian feeder in masked time.
- Cartesian feeder with controlled axes.
- Feeder/unloader for connection in line with ACCURL systems.
- Unloader.
- Carousel unloader.
- Roller-surface unloader for pallets.
- Roller-surface unloader for pallets and crates.
- Un-intrusive machine integration with sensors to back gauge fingers and bending beam which follow the programmed sequence of the Accurl press brake.
Detailed Pictures

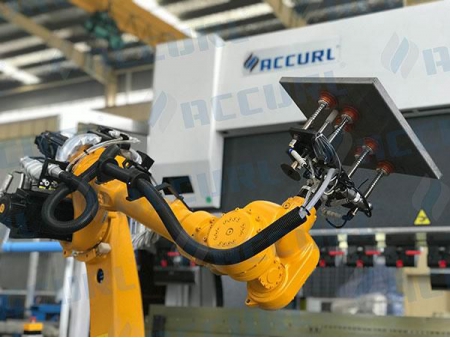

- Bending robotic cell for press brake
Auto Configuration

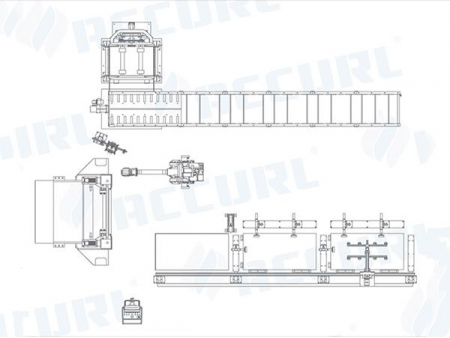

- Loading with Cartesian robot and highly autonomous multi-purpose unloader
