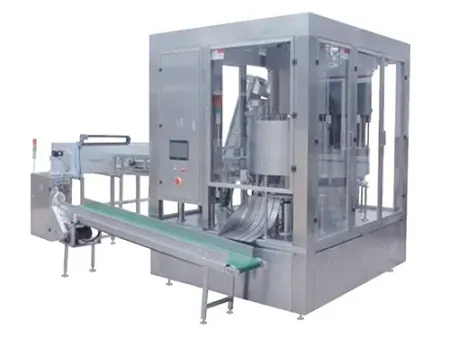

Automatic Rotary Spout Pouch Filling and Capping Machine, YL-(6-8)XZ
Intermittent Rotary Spout Pouch Filler & Capper
The YL-(6-8)XZ spouted pouch filling and capping machine is engineered for packaging various spout pouches. Constructed from stainless steel or powder-coated machine frame, with all product contact parts made of advanced stainless steel or other food-grade materials, the automatic pouch packing equipment is designed to meet high hygienic standards and deliver outstanding corrosion resistance and a long service life. It can be integrated with various automatic weighers, dispensers and elevators. To meet specific customer’s productions requirements, it supports advanced modules such as safety door emergency stop, automatic card dispensing, and rejection of non-conforming products. The entire process is fully automated and eliminates manual intervention, significantly boosting production throughput while minimizing labor and overhead expenses.

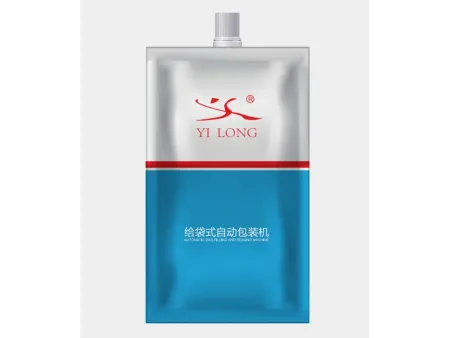

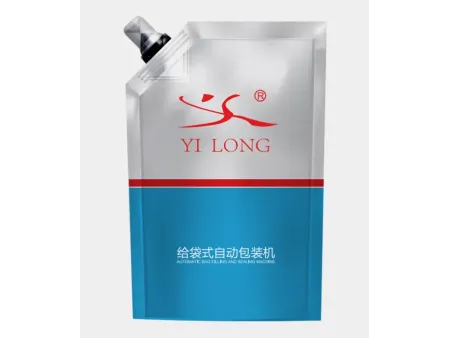

- Corner Spout Pouch
- Flat Spout Pouch
- Stand-up Spout Pouch (SUP)
- Shaped Spout Pouch
- Flat Bottom Spout Pouch
| Number of filling heads | 6–8 |
| Capacity | 60–130 pouches/min |
| Pouch size | Customizable |
| Packing weight | 10g–2kg |
| Power consumption | 8 kW |
| Power supply | 3-phase 380V 50Hz / 3-phase 380V 50Hz |
| Compressed air | 6–8 kgf/cm²; 0.8 m³/min |
| Machine weight | 1500 kg |
| Pouch style | Corner spout pouch, flat spout pouch, stand-up spout pouch, shaped spout pouch, flat bottom spout pouch |
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
