Section Bending Machine

Request a Quote

View All: http://fabricaitonmachines.com/section-bending-machine.html

Section bending machine is a profile bending machine suited to accomplish the processes of rolling and bending of various profiles.

Features

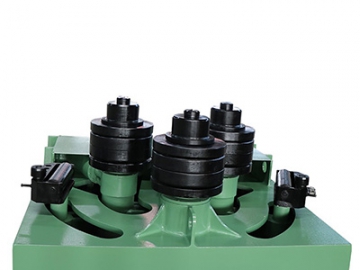

One roll is fixed and other two bending rolls move up and down, toward fixed rotation center, three rolls are all driving rolls that can be rotated forward and backward. The two bending rolls are hydraulically transmitted, providing smooth transmission and high reliability.

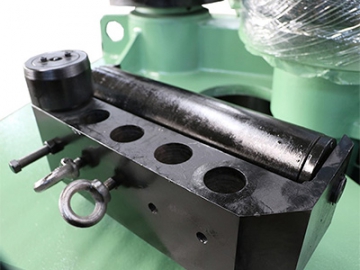

The fixed roll is supported by support rolls at two sides, these support rolls can achieve arc movement and rotation movement. Coupled with guide roll, the profile rolling accuracy can be better controlled.
Three rolls are driven by three high torque hydraulic motors to achieve forward and backward rotation. The rotation motion has a brake system to ensure a precision positioning of workpiece during rolling process.

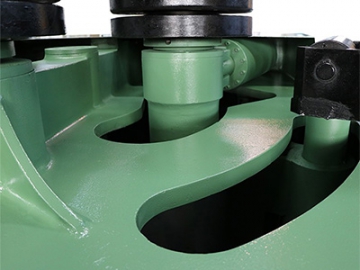

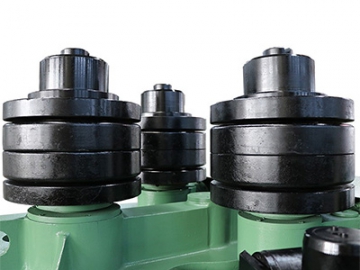

Main rolls are featured by high strength, rigidity, surface hardness and processing accuracy, can ensure a high reliability and long service life. Three main rolls are supported by spherical roller bearings to reduce friction.
Hydraulic cylinder, central shaft and other transmission parts are all supported by SF-1 oilless sliding bearings.

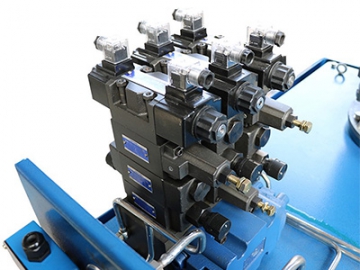

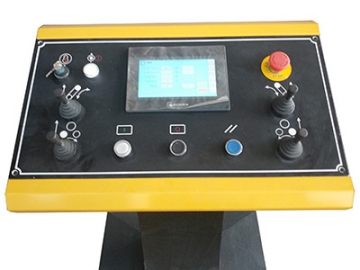

Overload protection is outfitted to hydraulic system, and control console has an emergency stop button to enable the machine to be stopped immediately.

Applications

Details

Specifications

		W24S
		6	16	30	45	75	100	140	180	260	320	400	500
Section modulus		6	16	30	45	75	100	140	180	260	320	400	500
Bending speed (m/min) ^		6				5			4
Yield limit (MPa)		△-250
Steel angle inner bending	Max. cross section (mm）	40x5	70x8	80x8	90x10	100x10	120x12	140x16	150x16	160x16	180x14	200x18	200x20
	Min. bending diameter (mm)	800	1000	1200	1500	2000	2500	2400	2600	2600	3600	3600	4000
	Min. cross section (mm)	20x3	30x3	35x3	36x5	38x4	40x5	50x5	50x6	60x6	70x6	75x6	85x6
	Min. bending diameter (mm)	400	550	560	600	600	720	1000	1200	1200	1500	1400	1600
	Max. cross section (mm)	50x5	80x8	90x10	100x10	120x12	140x16	150x16	160x16	180x14	200x18	200x24	250x25
	Min. bending diameter (mm)	800	1000	1100	1300	1600	1800	2200	2000	2500	3600	3600	4000
	Min. cross section (mm)	20x3	30x3	35x3	36x5	38x4	45x5	50x5	50x6	60x6	70x6	75x6	85x6
	Min. bending diameter (mm)	400	550	500	600	700	760	800	1000	1000	1300	1500	1600
Steel angle outer bending	Size of C beam	8	12	16	20	25	28	30	32	36	40	45	50
Steel angle outer bending	Min. bending diameter (mm)	600	800	800	1000	1100	1700	1200	1500	1800	2000	2000	2400
Steel channel outer bending	Size of C-beam	8	12	16	20	25	28	30	32	36	40	45	50
Steel channel outer bending	Min. bending diameter (mm)	700	900	1000	1150	1600	1700	1700	f800	1800	2000	2000	2400
Steel channel inner bending	Max. cross section (mm)	100x18	150x25	180x25	200x30	220x40	250x40	280x50	300x50	330x50	360x60	400x75	500x76
Steel channel inner bending	Min. bending diameter (mm)	600	700	800	900	1000	1200	1300	1500	1900	2000	2400	2400
Flat bar stand bending	Max. cross section (mm)	50x12	75x16	90x20	100x25	110x40	120x40	150x40	180x30	190x40	190x50	200x50	200x60
Flat bar stand bending	Min. bending diameter (mm)	500	760	800	1000	1100	1300	1500	2000	2000	2400	2200	250a
Flat bar flat bending	Max. diameter xT (mm）	42x4	76x4.5	89x5	89x8	114x5	159x5	168^6	168x8	219x8	245x8	273x8	323x10
Flat bar flat bending	Min. bending diameter (mm)	500	750	900	900	1200	2000	2000	2000	3500	3000	3500	4200
Round pipe bending	Max. bending diameter (mm）	38	52	62	75	85	90	100	110	120	135	150	160
Round pipe bending	Min. bending diameter (mm)	450	600	600	800	1000	tioo	1200	1300	1350	1800	2000	2000
Square pipe bending	Max. cross section (mm）	45x3	60x4	70x4	80x6	90x8	100x10	125x10	140x10	150x10	165x10	180x12	200x12
Square pipe bending	Min. bending diameter (mm)	750	900	1000	1200	1600	2000	2500	3000	3000	3500	3500	5000
	Max. cross section(mm)	35x5	70x6	80x8	90x10	100x10	120x12	140x12	150x12	160x14	170x14	180x16	200x16
	Min. bending diameter (mm)	600	1500	1600	1800	2000	2400	2500	2600	3500	4000	5000	6000
	Model of the H-beam	6	8	8	10	16	16	20	22	30	35	40	45
	Min. bending diameter (mm)	1200	1800	1800	2000	2200	2200	2600	2600	4000	4500	5000	6000
