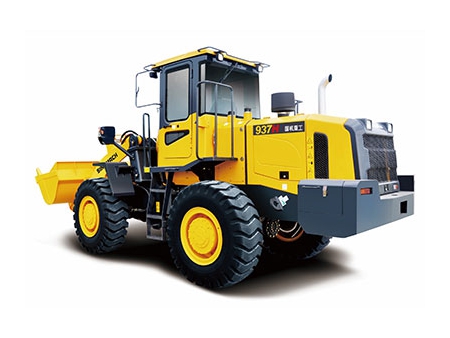

937H Wheel Loader
Request a Quote
- The 937H Wheel Loader is equipped with Dongfeng Cummins Engine.
- This front end loader adopts 3 forward and 3 reverse power shift transmission.
- The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.
Consulting Products Information
Technical Specification:
| Model | 937H |
| Length×Width×Height(mm) | 7000×2305×3136 |
| Rated load (Kg) | 3000 |
| Rated bucket capacity(m3) | 1.7 |
| Operating weight(Kg) | 10200 |
| Diesel engine | Cummins 6BT5.9-C130 / WeiChai WP6G125E22 |
| Rated output(KW) | 97/92 |
| Transmission case | ADVANCE |
| Gear positions | 4 forward, 2 reverse |
| Max. drawing force(KN) | 96 |
| Max. dump clearance(mm) | 2934 |
| Dump reach (mm) | 1043 |
| Wheel base(mm) | 2750 |
| Total cycle time (s) | 9.2 |
