947H Wheel Loader
Request a Quote
- The 947H Wheel Loader is equipped with Dongfeng Cummins Engine.
- The luxury cabin decoration and A/C of this wheel loader provide operator comfort.
- This front end loader adopts 2 forward and 1 reverse power shift transmission.
- The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.
Consulting Products Information
Technical Specification:
Model | 947H |
Length×Width×Height(mm) | 7670×2570×3375 |
Rated load (Kg) | 4000 |
Rated bucket capacity(m3) | 2.35 |
Operating weight(Kg) | 12300 |
Diesel engine | Cummins 6BTA5.9-C180 |
Rated output(KW) | 132 |
Transmission case | 4WG180 |
Gear positions | 4 forward gear, 3 reverse gear |
Max. drawing force(KN) | 120 |
Max. dump clearance(mm) | 3176 |
Dump reach (mm) | 1095 |
Wheel base(mm) | 3067 |
Total cycle time (s) | 9.8 |

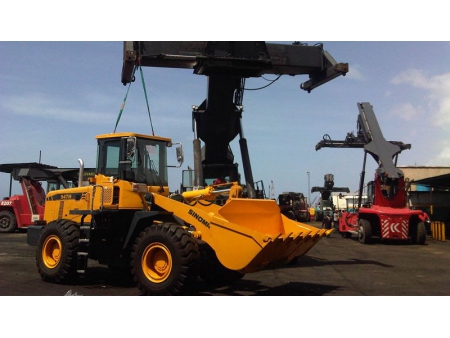

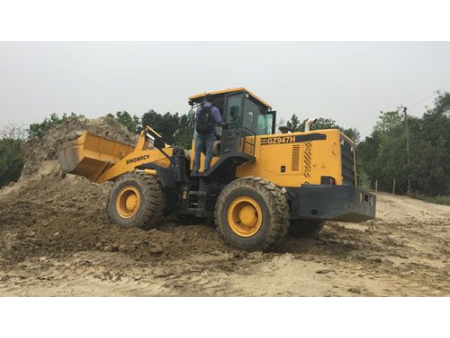

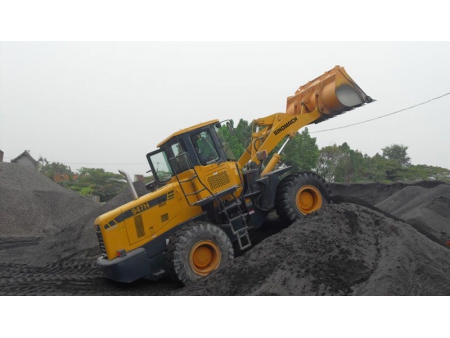

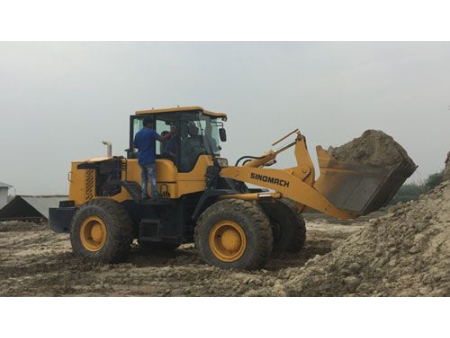

Gallery
![](public/propic/4082/b_wheel-loader-947h_01b.jpg)
![](public/propic/4082/b_wheel-loader-947h_02b.jpg)
![](public/propic/4082/b_wheel-loader-947h_03b.jpg)
![](public/propic/4082/b_wheel-loader-947h_04b.jpg)
![](public/propic/4082/b_wheel-loader-947h_05b.jpg)
