957H Wheel Loader
Request a Quote
- The 957H Wheel Loader is equipped with reliable SHANGCHAI SC11CB220G2B1 engine or Cummins engine.
- This front end loader adopts 3 forward and 3 reverse power shift transmission.
- The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.
Consulting Products Information
Technical Specification:
Model | 957H |
Length×Width×Height(mm) | 8390×2800×3450 |
Rated load (Kg) | 5000 |
Rated bucket capacity(m3) | 3.0 |
Operating weight(Kg) | 17300 |
Diesel engine | Cummins 6LTAA 9.3/ShangChai SC11CB220G2B1 |
Rated output(KW) | 158/162 |
Transmission case | CHANGLIN |
Gear positions | 3 forward gear, 3 reverse gear |
Max. drawing force(KN) | 160 |
Max. dump clearance(mm) | 3136 |
Dump reach (mm) | 1121 |
Wheel base(mm) | 3300 |
Total cycle time (s) | 11 |
Gallery

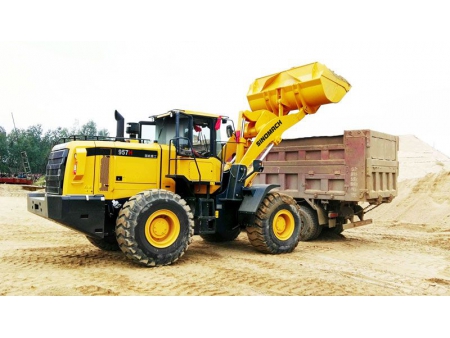

![](public/propic/4082/b_wheel-loader-957h_01b.jpg)

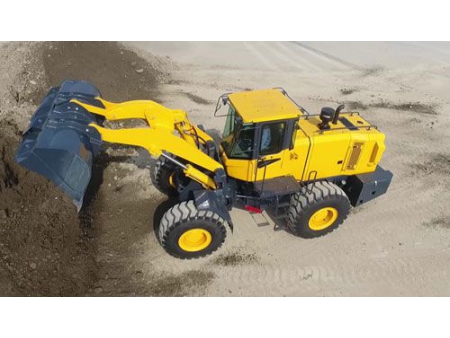

![](public/propic/4082/b_wheel-loader-957h_02b.jpg)

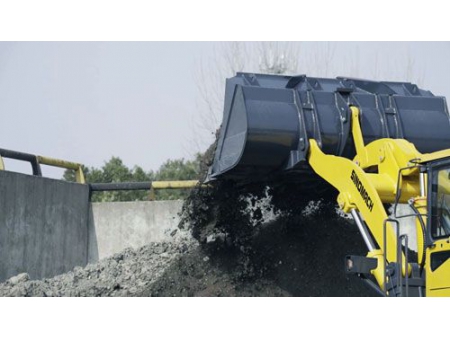

![](public/propic/4082/b_wheel-loader-957h_03b.jpg)

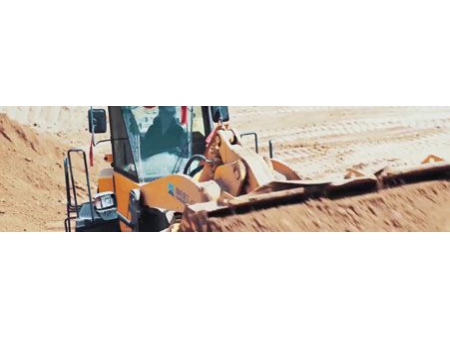

![](public/propic/4082/b_wheel-loader-957h_04b.jpg)

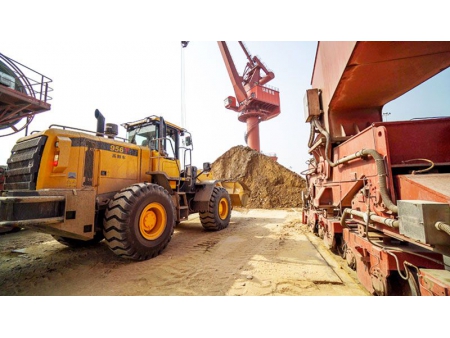

![](public/propic/4082/b_wheel-loader-957h_05b.jpg)
