Fiber Laser Cutting Machine with Exchange Table, RJ-3015E
Laser metal cutter for thin to medium-thick sheet metal cutting
RJ-3015E fiber laser cutting machine is a cost-effective solution for fast processing of thin to medium-thick sheet metals of up to 20mm in thickness. This metal plate cutting machine is designed with exchange table, significantly improving working efficiency.
- Cutting area
- 3000×1500mm
- Laser power
- 2000-6000W (optional)
- Positioning accuracy
- ±0.03mm
- Max. acceleration
- 1.2G
- Repositioning accuracy
- ±0.02mm
- Power supply
- AC 380V, 3-phase, 50/60Hz
- Max. cutting speed
- 70m/min

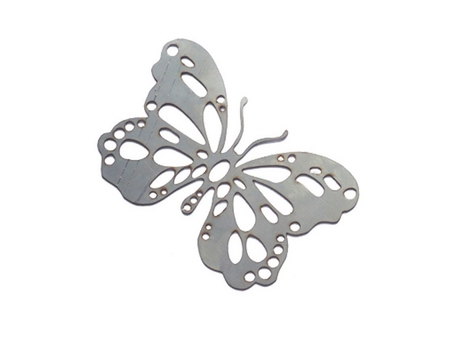

Stainless steel 1-8mm
Stainless steel 1-8mm

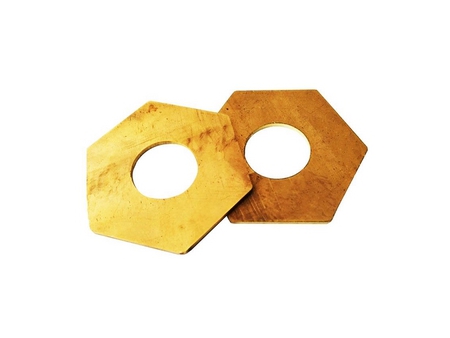

Brass 1-6mm

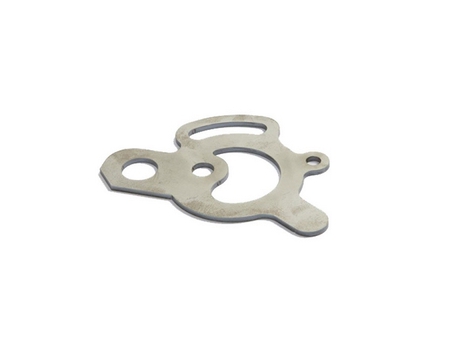

Aluminum 1-8mm
Aluminum 1-8mm

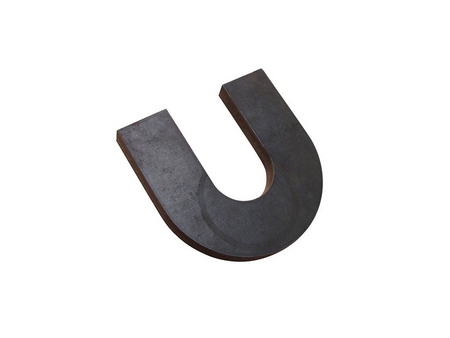

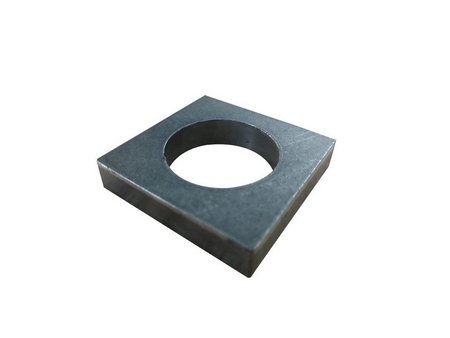

Carbon steel 1-16mm
Carbon steel 1-16mm
-
-
Heavy Duty Welded Bed
The machine bed is constructed with high-strength carbon structural steel by welding. The welded bed is heat treated at high temperature of 600℃, efficiently ensuring high durability of structure and enabling it able to last for 20 years without deformation.
-
-
Fourth Generation of Aviation Aluminum Crossbeam
The crossbeam is made from aviation aluminum alloy that has good dynamic performance. The beam is designed with honeycomb structure to provide better structural strength.
-
-
Auto Focus Laser Cutting Head
The laser cutting head allows for automatically adjusting focus lens to an appropriate position by software, thus achieving automatic cutting of sheet metals with different thickness.
-
Raycus Laser Source
This laser source directly controls all types of fiber laser functions, realizing synchronous control of laser source.
-
Independent Control Cabinet
The control cabinet features a design of dustproof and vibration resistance, efficiently prolonging the service life of electrical components.
-
IPAD Screen Design
Tempered glass panel design provides high definition effect and smooth operation.
-
Newly Developed Laser Head Protective Cover
The laser head is guarded by protective cover which allows for clear observing of red light, good heat dissipation and minimal dust, efficiently avoiding cause the gas path inside the cutting head to burn.
-
Exchange Worktable
The fiber laser metal cutter adopts upper and lower exchange platform which enables the worktable to be exchanged within 15 seconds, greatly shortening the loading time and maximizing the working efficiency.
Systmz is a private limited company specialized in manufacturing sheet metal parts. The company is faced with tough challenges for process reliability and part quality, particularly a large number of complex and precision parts that are used in industrial machines.
This customer purchased a Ruijie 1000W fiber laser cutting machine from us, and they were very impressed with the perfect interaction of hardware and software. The safe and automated part unloading process assists the customer in saving their labor intensity, reducing their operation steps and shortening their working time. Currently, the fiber laser cutting machine is well running and the professionalism of their workshop has been widely recognized by their customers.
