Sheet & Tube Fiber Laser Cutting Machine with Exchange Table, RJ-3015ET
Combination fiber laser machine for metal sheet and tube cutting
RJ-3015ET combination fiber laser machine is a dual-purpose metal cutting machine that can cut both metal sheets and tubes. It is equipped with exchange worktable to significantly improve the working efficiency.
- Cutting area
- 3000×1500mm
- Laser power
- 2000-6000W (optional)
- Positioning accuracy
- ±0.03mm
- Max. acceleration
- 1.2G
- Repositioning accuracy
- ±0.02mm
- Power supply
- AC 380V, 3-phase, 50/60Hz
- Moving speed
- 140m/min
- Round tube cutting diameter
- 15-220mm
- Square tube cutting size
- 20×20mm-150×150mm

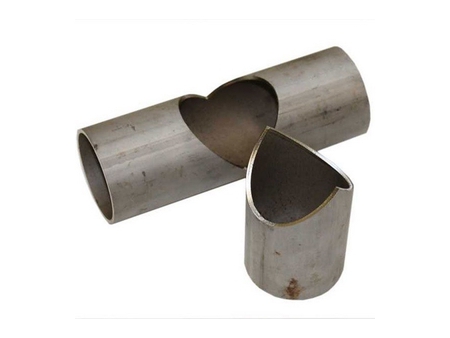

Round tube 15-220mm
Round tube 15-220mm

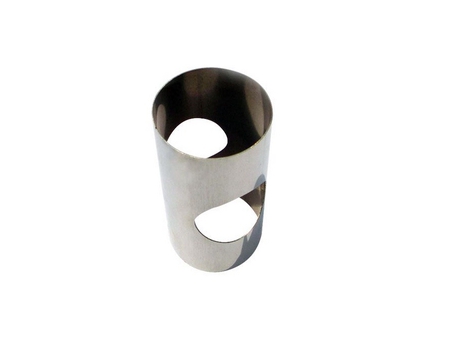

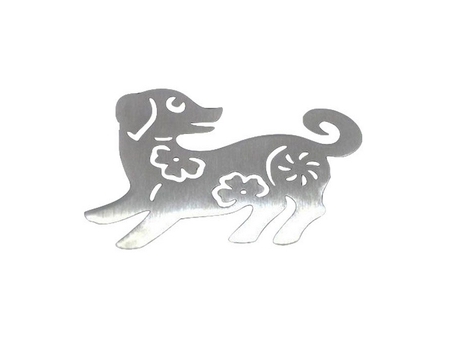

Stainless steel 1-40mm
Stainless steel 1-40mm

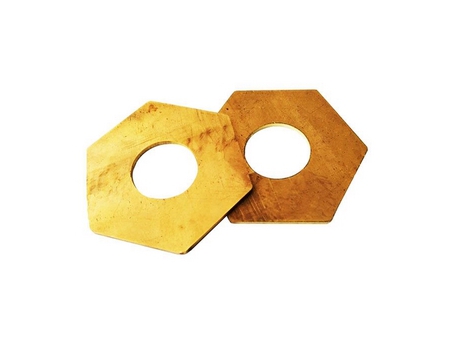

Brass 1-16mm
Aluminum 1-40mm
Aluminum 1-40mm

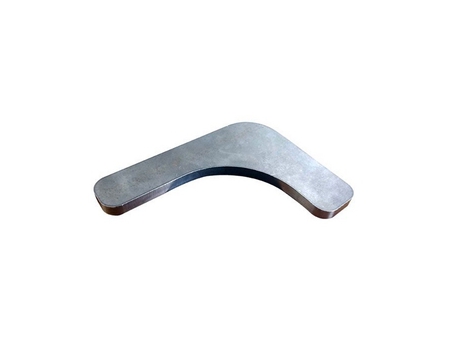

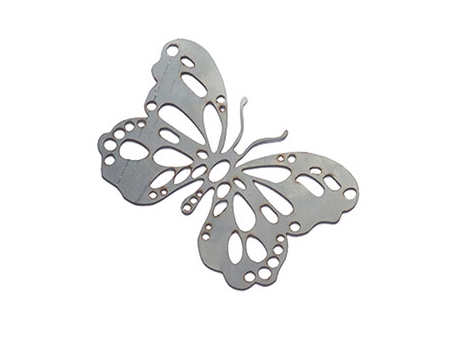

Carbon steel 1-30m
Carbon steel 1-30mm
-
Heavy Duty Welded Bed
The machine bed is constructed with high-strength carbon structural steel by welding. The welded bed has undergone a 600°C heat treatment, efficiently ensuring high durability of structure and enabling it able to last for 20 years without deformation.
-
Exchange Worktable
The fiber laser metal cutter adopts upper and lower exchange platform which enables the worktable to be exchanged within 15 seconds, greatly shortening the loading time and maximizing the working efficiency.
-
Fourth Generation of Aviation Aluminum Crossbeam
The crossbeam is made from aviation aluminum alloy that has good dynamic performance. The beam is designed with honeycomb structure to provide better structural strength.
-
Auto Focus Laser Cutting Head
The laser cutting head allows for automatically adjusting focus lens to an appropriate position by software, thus achieving automatic cutting and perforating of metals with different thickness.
-
Raycus Laser Source
This laser source directly controls all types of fiber laser functions, realizing synchronous control of laser source.
-
Independent Control Cabinet
The control cabinet features a design of dustproof and vibration resistance, efficiently prolonging the service life of electrical components.
-
IPAD Screen Design
Tempered glass panel design provides high definition effect and smooth operation.
-
Chuck
The chuck permits quick adjusting and precise positioning of metal tubes with different sizes, providing good adaptability. The rear chuck features extended length, enabling the cutting tailing to be further shortened therefore maximizing utilization rate of the material.
-
Fractional Automatic Support
The automatic tube support system allows for rapid loading of metal tubes and reducing tube oscillation, therefore ensuring high precision of cutting.
