Four-Color Digital Rotary Inkjet Printer Manufacturer

Four-Color Digital Rotary Inkjet Printer

Request a Quote

View All: http://upg-printpacking.com/1-1-10-four-color-digital-rotary-inkjet-printer.html

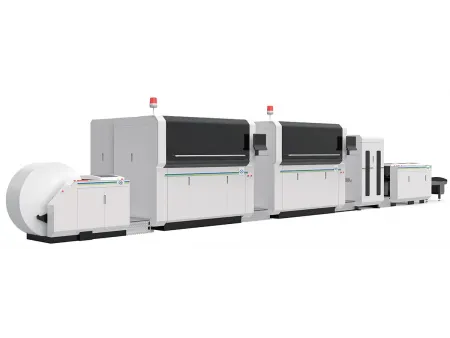

LQ-MD 440C

Digital printing press

Equipped with a high-resolution 600×1200 dpi industrial-grade printhead, this four-color digital rotary inkjet printer produces vibrant and detailed prints that rival traditional offset printing effects. With the ability to print up to 1010 A4 pages per minute, it efficiently meets various printing demands. This printer uses water-based pigment ink developed in-house, enhancing the print quality on a wide range of media including coated paper, photo paper, and other specialty materials. Users can easily produce a variety of products such as color books, manuals, and instruction books.

Applications

Drawing books
Magazines
Menus
Short edition books
Invitation cards
Leaflets

Specifications

Model	LQ-MD 440C
Printhead	Industrial grade piezoelectric printhead Highest resolution 600×1200dpi
Ink Type	Water-based pigment ink
Printing Method	Four color duplex
Print Speed	1010 A4 sides/min at speed of 75 ml/min
Max. Paper Width	440mm
Paper Range	40g-200g
Paper Type	Ordinary offset paper, digital offset paper, inkjet coated paper, coated paper, photo paper
Software	Workflow inkjet edition, support a variety of international standard file formats
Paper Feeding
Paper Feeding & Winding Mechanism	Automatic roll feeding
Max. Winding Diameter	1270mm
Max. Winding Width	440mm
Cutting Line
Max. Speed	100m/min
Paper Grammage	40gsm-200gsm
Paper Width	140mm-440mm
Max. Rewinding Paper Width	440mm
Max. Rewinding Paper Length	450mm (can be customized, such as:880mm)
Cutting Sizes	For example, 16 sheets longitudinally arranged in 2 stacks
Configurations	Including buffer, cutter, stacker, conveyor and so on

Features

This digital printer offers a high degree of automation and seamless connectivity, simplifying operations and ensuring a stable, efficient process. Users can benefit from reduced setup times and increased productivity.
This printer features a complete data processing system and uses industrial-grade, on-demand piezoelectric printheads. Maintenance is straightforward, thanks to unique break prevention technology that supports seamless folio printing. The printheads also moisturize and clean automatically, allowing for immediate operation upon startup and continuous ink supply without interruption.
The ink for this rotary printer was specially developed to produce prints with rich colors and clear details. It works well on various types of paper and is designed to save energy while drying quickly.
All the four-color digital inkjet printer's systems are designed to work together smoothly. This includes automatic systems for buffering, cutting, and stacking printed materials. These systems help save labor by keeping everything running smoothly and continuously, which is great for businesses looking to streamline their operations.
