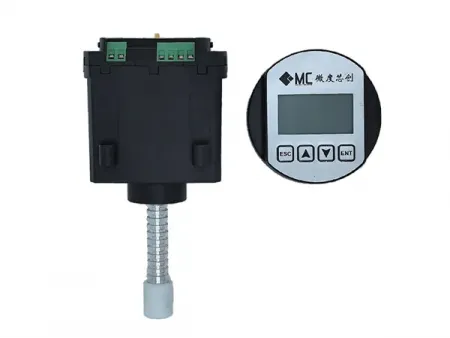

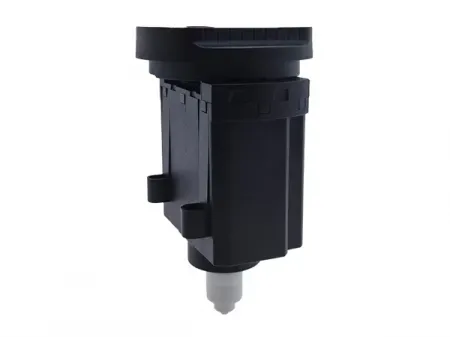

Non-Contacting Radar Level Measurement Module

Request a Quote

Website: http://radarsensor-en.com/1-1-2-non-contacting-radar-level-measurement-module.html

Radar Level Measurement

80GHz millimeter wave radar electronic module used in non-contacting radar level transmitter for liquids and solids

The 80GHz millimeter-wave radar module is a key part used in non-contact level transmitters to measure liquids and solids with high precision. It works well even in demanding environments like steam, agitation, or dusty conditions. Thanks to its compact design and compatibility with different antenna types, it can be installed in threaded, corrosion-resistant, sanitary, or high-temperature setups, reaching up to 1000°C when needed.

Parameters

Frequency Range 76 – 81 GHz millimeter-wave radar
Process Temperature −40 °C to 85 °C / up to 200 °C
Process Pressure −0.1 to 1 MPa
Measuring Accuracy ±1 mm
Measuring Range 10m/30m/60m/120m
Explosion Protection Ex d ia ⅡC T6 Ga
Beam Angle 3° / 8°
Installation Suitable for housings made of stainless steel or aluminum alloy
Protection Rating IP67
Housing Material PC plastic / Nylon
Communication Interface 4–20 mA / HART / RS485 / TTL / Bluetooth
User Interface 128×64 LCD display with 4-button keypad or PC software
Certifications CNEX Explosion-proof Certificate
Weight Approx. 281 g
Dimensions (L × W × H) High-temperature type: 76 × 77.5 × 167 mm; Standard type: 76 × 76 × 126 mm
Recommended Cable AWG18 or 0.75 mm²
Fault Output 3.8 mA, 4 mA, 20 mA, 21 mA, or hold function

Structure Diagram

Features

Uses a self-developed radar chip that gives very precise readings, up to ±1 mm, and keeps the blind zone as small as 2 cm for more accurate measurements.
Supports Bluetooth connection and remote setup, so the system can be adjusted or maintained easily without being on-site
Multi-language interface available, with customizable display options.
No distance calibration required, simplifying assembly and production
