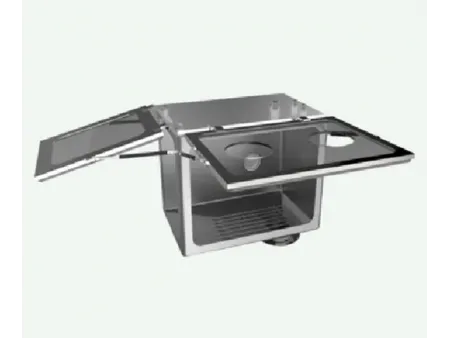

Containment Glovebox (Reactor Charging Glovebox)

Request a Quote

Website: http://powerhandling-en.com/1-1-3-2-containment-glovebox.html

Powder handling glovebox for safe handling of potent powders and charging reactors in a sealed manner

Overall dimensions: Customized
Working pressure: -0.7kPa to 0.7kPa
Optional features: Oxygen concentration monitoring
Nitrogen purging

A containment glovebox is designed for the safe handling of potent or hazardous powders and charging of reactors under fully sealed conditions. The powder handling glovebox is generally integrated with vacuum conveying systems at the material discharging inlet, enabling fully enclosed powder transfer for sensitive or hazardous processes. The unit consists of a roller conveyor, unpacking chamber, collection chamber, dust extraction system, observation window, and anti-static gloves. The glovebox is available in SS304 or SS316L stainless steel, ensuring long service life and reliable performance in demanding environments requiring corrosion resistance.

Features

Complete containment and operator safety
The glovebox is equipped with an unpacking and collection chamber, ensuring full containment of toxic or corrosive powders. Anti-static gloves enable safe, sealed handling without operator exposure. Optional ATEX-certified components and oxygen concentration monitoring are available for flammable dust applications.
High-grade construction and compatibility
The main structure is made of high-quality SS316L stainless steel, ideal for strong acid or alkali environments. The interface system uses quick-clamp and flange connections, compatible with vacuum conveying systems.
Negative pressure dust extraction
Integrated dust collection system with 0.3 μm HEPA filtration keeps dust escape below 0.1%, maintaining cleanroom-grade containment.
Seamless line integration
The roller conveyor enables automatic bag transfer into the glovebox for unpacking, followed by vacuum conveying directly to the reactor. This reduces manual handling steps. Optional CIP cleaning system completes automated cleaning within 30 minutes while reducing water consumption by 40%.
Versatile industry adaptability
Suitable for a wide range of industries from pharmaceutical and chemical production to new energy materials processing, wherever safe, enclosed powder handling is required.

Applications

Discharging of corrosive or toxic powders (e.g., pesticides), providing operator protection
Handling and transfer of lightweight materials
Safe discharging of flammable materials or use in explosion-proof environments such as alumina processing
Reactor charging operations in pharmaceutical, chemical, and specialty material production

Typical Applications

Lithium cobalt oxide
Imidacloprid
Silver powder

Customizable Options

Structural Component Customization

Module	Customization options	Application scenario
Roller conveyor system	Length: 1–5 m; Load capacity: 50–500kg	Suitable for small bag (25kg) or drum discharging
Unpacking chamber	Dual-station configuration; Explosion-proof viewing window	High-frequency discharging lines
Collection chamber	Conical hopper with vibration and de-clogging device	Materials prone to agglomeration
Glove operation ports	Quantity: 1–4 pairs; Material: Acid-resistant rubber gloves	Corrosive or toxic materials

Material Upgrade Options

Component	Material options
Main frame	SS316L stainless steel (default:SS264)
Inner wall & hopper	SS316L stainless steel
Sealing parts	Fluororubber (FKM)

Dust Control Customization

Module	Customization options
Dust extraction system	Basic version: single-point suction (airflow 200 m³/h); Enhanced version: multi-point vortex extraction (airflow 500 m³/h) with 0.3 μm HEPA filter
Negative pressure monitoring	Integrated differential pressure sensor automatically adjusts airflow to maintain negative pressure ≥ -50 Pa in the unpacking chamber

Explosion-Proof and Safety Enhancements

Risk type	Customized solution	Applicable materials
Electrostatic ignition	System-wide grounding with anti-static gloves and ionizing air bar	Aluminum powder / coal dust
Flammable gas	Oxygen concentration sensor with automatic nitrogen purging (O₂ <5% LEL)	Lithium battery materials / sulfur powder
Mechanical sparks	ATEX-certified explosion-proof motor with tool-free disassembly components	Metallic nanopowders

Cleaning System Upgrade

Cleaning requirement	Customized solution
Routine cleaning	Detachable design with cleaning ports
Sterile environment	CIP (Clean-in-Place) system with 3D rotary spray balls
Drying and moisture prevention	Hot air purge function

Compatible Equipment

The containment glovebox can be integrated with vacuum conveying systems for fully enclosed powder transfer.

Project Implementation Showcase

Reactor charging process at a pharmaceutical company
Contained powder handling at an agrochemical plant
Reactor charging operation at a pharmaceutical production site

For powder processing, we also provide a .
