Battery Powered Strapping Tools
Request a Quote
Changcheng’s handheld battery powered strapping tool equipped with a rechargeable lithium-ion battery is safe and convenient to use since it can do the strap cutting, welding, sealing jobs without air tubes nor electric cables. The battery powered strapping tool can be used for all kinds of strap sizes of 13mm, 16mm, 19mm and 25mm. The use of Changcheng’s battery strapping tool can increase packing speed, lower operation cost and deliver good strapping performance.

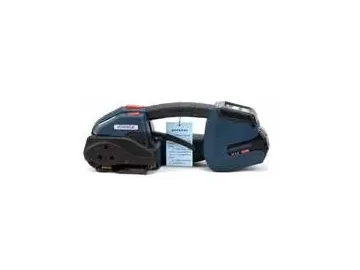

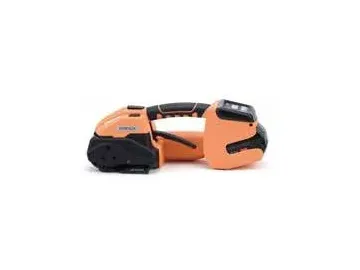

Model |
|
|
|
Colour | Dark green | Dark green | Pastel orange |
Strap material | PET&PP | PET&PP | PET&PP |
Strap width (mm) | 13-16 | 13-16 | 13-19 |
Strap thickness (mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
Battery type | 18V 5.0Ah 90Wh | 18V 5.0Ah 90Wh | 18V 5.0Ah 90Wh |
Charging time (min) | 90 | 90 | 90 |
(Cycle per battery charge(pcs) | 600 | 600 | 600 |
Machine weight (kg) | 3.7 | 3.4 | 3.4 |
Machine dimension (mm) | 370x140x135 | 370x140x135 | 370x140x135 |
Tension force (N) | 400-3200 | 400-3500 | 400-5500 |
Tension speed (cm/s) | 18 | 18 | 18 |
Sealing time (s) | 0.5-3.5 (adjustable) | 0.5-3.5 (adjustable) | 0.5-3.5 (adjustable) |
Cooling time | 2.5 (adjustable) | 2.5 (adjustable) | 2.5 (adjustable) |
Parameter setting | Button LED | Button LED | Button LED |
Operation mode | Auto / semi / manual | Auto / semi / manual | Auto / semi / manual |
Strapping mode | PP / PET | PP / PET | PP / PET |
Motor | Brushless motor | Brushless motor | Brushless motor |

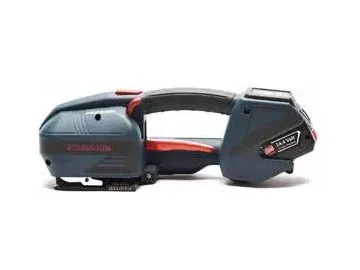

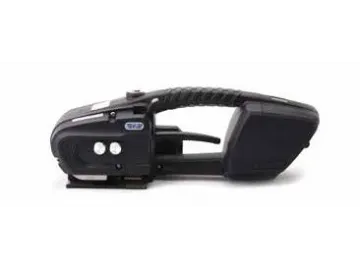

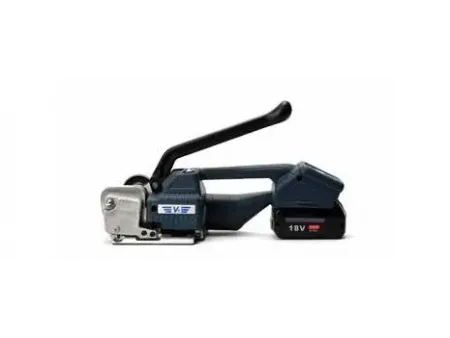

Model |
|
|
|
Colour | Dark green | Dark green | Black |
Strap material | PET&PP | PET&PP | PET&PP |
Strap width (mm) | 13-16 | 13-16 | 13-16 |
Strap thickness (mm) | 0.4-1.2 | 0.4-1.2 | 0.4-1.2 |
Battery type | 18V 2.0Ah 36Wh | 14.4V 4.0Ah 57.6Wh | 14.4V 4.0Ah 57.6Wh |
Charging time (min) | 60 | 90 | 90 |
Number of bands (pcs) | 300 | 300 | 400 |
Machine weight (kg) | 3.6 | 3.35 | 2.57 |
Machine dimension (mm) | 360x140x200 | 380x130x130 | 340x130x118 |
Tension force (N) | 2800 | 400-3200 (adjustable) | 600-3200 |
Tension speed (cm/s) | Manual tightening | 14 | 12 |
Sealing time (s) | 0.5-3.5 (adjustable) | 0.5-3.5 (adjustable) | 0.5-3.5 (adjustable) |
Parameter setting | Buttons LED | Buttons LED | Controller knob |
Motor | Brushless motor | Brushless motor | Brushless motor |

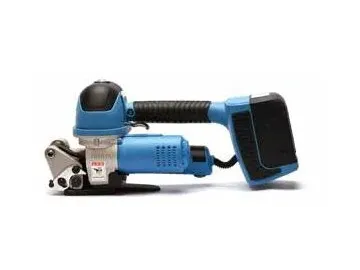

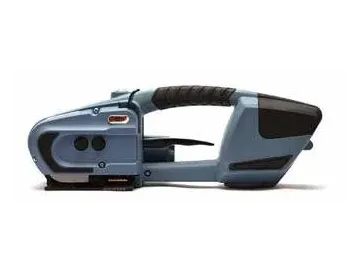

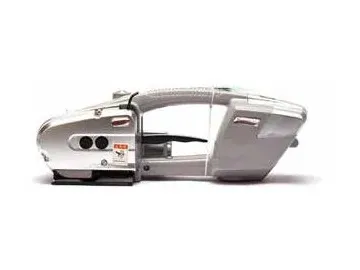

Model |
|
|
|
Colour | Blue-black | Sapphire blue | Silver |
Strap material | PET | PET&PP | PET&PP |
Strap width (mm) | 16-25 | 13-16 | 13-16 |
Strap thickness (mm) | 0.8-1.2 | 0.4-1.2 | 0.4-1.2 |
Battery type | 14.8V 4.0Ah 59.2Wh | 11.1V 4.0Ah 44.4Wh | 11.1V 3.0Ah 33.3Wh |
Charging time (min) | 90 | 90 | 90 |
Cycle per battery charge (pcs) | 100-180 | 100-200 | 100-180 |
Machine weight (kg) | 3.8 | 2.9 | 2.8 |
Machine dimension (mm) | 350x135x170 | 340x130x118 | 340x130x118 |
Tension force (N) | 400-5000 (adjustable) | 600-2800 (adjustable) | 600-2800N (adjustable) |
Tension speed (cm/s) | 12 | 12 | 12 |
Sealing time (s) | 1.0-3.0 (adjustable) | 1.0-3.0 (adjustable) | 1.0-3.0 (adjustable) |
Parameter setting | Buttons LED | Controller knob | Controller knob |
Motor type | Brushed motor | Brushed motor | Brushed motor |
Speak To Our Specialists
Our team of experienced specialists provides strapping and packaging solutions based on their in-depth knowledge and expertise for your applications.
