CNC Double Servo Hybrid Press Brake Manufacturer

CNC Double Servo Hybrid Press Brake

Request a Quote

View All: http://rt-machinetools.com/1-3-cnc-double-servo-hybrid-press-brake.html

Sheet Metal Bending Machine

UBB-D Series

Sheet Metal Bending Machine

UBB-D Series

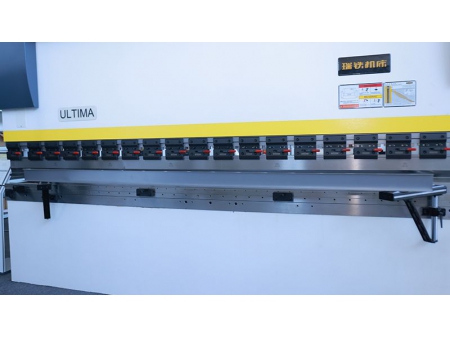

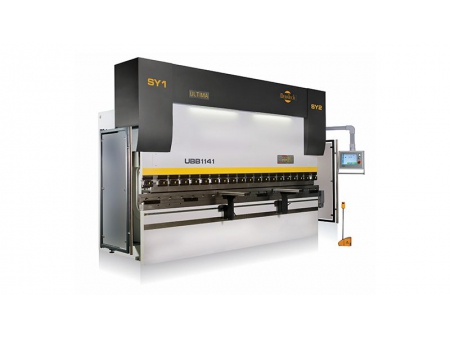

UBB-D Series double servo hybrid press brake, developed by DERATECH, is a proprietary patented product (2017112435900) of our company. With a set of servo motors and servo pumps on both the left and right sides, it controls the smooth operation of the Y1 and Y2 axes, providing faster response speed.

High efficiency, and fast speed: By using two independent servo motors to control the slide block and advanced hydraulic circuitry, the working speed of the slide block is increased, reducing response time and improving efficiency.
Energy-saving: With dual servos and dual oil tanks, it saves approximately 50% of oil consumption compared to traditional hydraulic bending machines, while also prolonging the usage time of hydraulic oil.
Low noise: The use of dual servos significantly reduces noise during production.

Applications

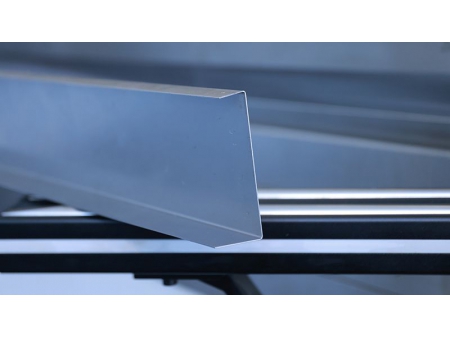

This sheet metal bending machine can be applied for the manufacturing of:

car body panels
refrigerator casings
electronic casings and brackets
stainless steel plates
and more

Parameters

(bending capacity: 80 to 320 ton)

Model	Force (kN)	A	B	C	D	E	Main power (kW)	Oil volume (L)	X axis stroke (mm)	R axis stroke (mm)	Max. speed (mm/s)			Dimensions (LWH) (mm)	Weight (kg)
Model	Force (kN)	Max. bending length (mm)	Distance between uprights (mm)	Throat depth (mm)	Cylinder stroke (mm)	Opening height (mm)	Main power (kW)	Oil volume (L)	X axis stroke (mm)	R axis stroke (mm)	Approaching speed	Working speed	Returning speed	Dimensions (LWH) (mm)	Weight (kg)
UBB-80/2500D	800	2500	2000	300	160	425	2 ×3.7	2 ×70	450	200	300	0-20	250	299014702410	6100
UBB-100/3200D	1000	3200	2700	400	200	475	2 ×5.5	2 ×70	450	200	300	0-15	220	370015502645	7800
UBB-110/2500D	1100	2500	2000	400	225	500	2 ×5.5	2 ×70	600	200	300	0-15	220	301016702720	7900
UBB-110/3200D	1100	3200	2700	400	225	500	2 ×5.5	2 ×70	600	200	300	0-15	220	371016702720	9000
UBB-110/4100D	1100	4100	3600	500	225	500	2 ×5.5	2 ×70	600	200	300	0-15	220	461017702720	10900
UBB-130/2500D	1300	2500	2000	400	225	500	2 ×5.5	2 ×70	600	200	300	0-15	220	301016702720	7900
UBB-130/3200D	1300	3200	2700	400	225	500	2 ×5.5	2 ×70	600	200	300	0-15	220	371016702720	9000
UBB-130/4100D	1300	4100	3600	500	225	500	2 ×5.5	2 ×70	600	200	300	0-15	220	461017702720	11300
UBB-130/5100D	1300	5100	4600	400	225	500	2 ×5.5	2 ×70	600	200	200	0-15	160	561018202960	15200
UBB-130/6100D	1300	6100	5600	400	225	500	2 ×5.5	2 ×70	600	200	200	0-15	160	661018203110	17700
UBB-160/3200D	1600	3200	2700	400	200	475	2 ×5.5	2 ×70	600	200	300	0-15	200	372017002685	9800
UBB-160/4100D	1600	4100	3600	500	200	475	2 ×5.5	2 ×70	600	200	300	0-15	200	462017002685	11500
UBB-170/2500D	1700	2500	2000	400	225	500	2 ×5.5	2 ×70	600	200	300	0-15	200	303016802720	8800
UBB-170/3200D	1700	3200	2700	400	225	500	2 ×5.5	2 ×70	600	200	300	0-15	200	373016802720	10100
UBB-170/4100D	1700	4100	3600	500	225	500	2 ×5.5	2 ×70	600	200	300	0-15	200	463017902720	12100
UBB-170/5100D	1700	5100	4600	400	225	500	2 ×7.5	2 ×120	600	200	180	0-15	130	563018002960	17000
UBB-170/6100D	1700	6100	5600	400	225	500	2 ×7.5	2 ×120	600	200	180	0-15	130	663018003160	20000
UBB-230/2500D	2300	2500	2000	420	225	500	2 ×7.5	2 ×120	600	200	160	0-15	160	304017002720	10500
UBB-230/3200D	2300	3200	2700	420	225	500	2 ×7.5	2 ×120	600	200	160	0-15	160	375017002720	11800
UBB-230/4100D	2300	4100	3600	420	225	500	2 ×7.5	2 ×120	600	200	160	0-15	160	465017002720	13700
UBB-230/5100D	2300	5100	4600	420	225	500	2 ×7.5	2 ×120	600	200	150	0-15	150	564018803060	18600
UBB-230/6100D	2300	6100	5600	420	225	500	2 ×7.5	2 ×120	600	200	150	0-15	150	664018803210	21600
UBB-250/2500D	2500	2500	2000	400	250	525	2 ×7.5	2 ×120	600	200	150	0-15	150	305019202975	12100
UBB-250/3200D	2500	3200	2700	400	250	525	2 ×7.5	2 ×120	600	200	150	0-15	150	375019202975	14000
UBB-250/4100D	2500	4100	3600	400	250	525	2 ×7.5	2 ×120	600	200	150	0-15	150	465019202975	16000
UBB-250/5100D	2500	5100	4600	400	250	525	2 ×7.5	2 ×120	600	200	130	0-15	130	565019203125	21200
UBB-250/6100D	2500	6100	5600	400	250	525	2 ×7.5	2 ×120	600	200	130	0-15	130	665019203325	24600
UBB-320/3200D	3200	3200	2700	400	300	575	2 ×7.5	2 ×120	600	200	120	0-12	130	393021103205	17700
UBB-320/4100D	3200	4100	3600	400	300	575	2 ×7.5	2 ×120	600	200	120	0-12	130	483021103205	20300
UBB-320/5100D	3200	5100	4600	400	300	575	2 ×7.5	2 ×120	600	200	100	0-12	110	583021503690	26100
UBB-320/6100D	3200	6100	5600	400	300	575	2 ×7.5	2 ×120	600	200	100	0-12	110	683021503855	30400
