Sheet Metal Bending Machine

CBB-D Series

Sheet Metal Bending Machine

CBB-D Series

  • High efficiency, and fast speed: By using two independent servo motors to control the slide block and advanced hydraulic circuitry, the working speed of the slide block is increased, reducing response time and improving efficiency.
  • Energy-saving: With dual servos and dual oil tanks, it saves approximately 50% of oil consumption compared to traditional hydraulic bending machines, while also prolonging the usage time of hydraulic oil.
  • Low noise: The use of dual servos significantly reduces noise during production.

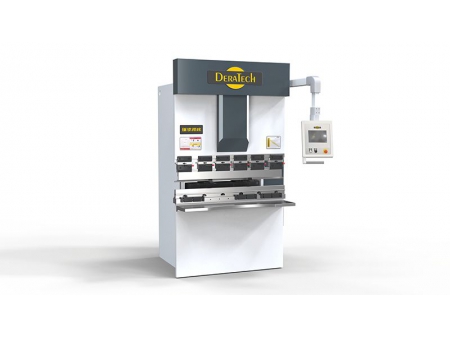

  • CBB-35/1250D
    Hybrid Press Brake

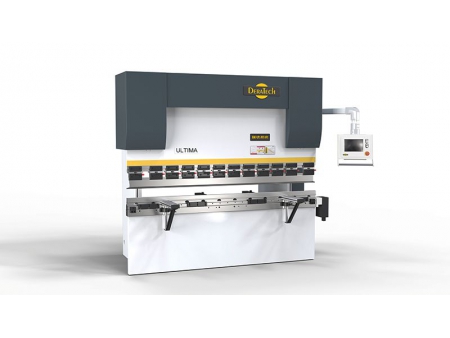

  • CBB-70/2500D
    Hybrid Press Brake
Applications
  • Processing of aluminum curtain walls
  • Stainless steel bending processing
  • Enclosure/Cabinet bending processing
  • Kitchenware bending
  • Processing of agricultural machinery components
  • Vehicle maintenance
  • Engineering machinery component processing
  • Elevator component processing
  • Processing of small home appliances (including lighting fixtures)

All industries that require sheet metal bending processing.
Combine with a robot (automatic bending cell) for intelligent factories to obtain higher efficiency.

Parameters

(bending capacity: 35 to 70 ton)

Model Force (kN) A B C D E Main power (kW) Oil volume (L) X axis stroke (mm) R axis stroke (mm) Max. speed (mm/s) Dimensions
(L*W*H)
(mm)
Weight (kg)
Max. bending length (mm) Distance between uprights (mm) Throat depth (mm) Cylinder stroke (mm) Opening height (mm) Approaching speed Working speed Returning speed
CBB-35/1250D★ 350 1250 900 200 120 385 3.7 70 450 100 250 0-20 250 1650 1210 2245 2900
CBB-50/1650D★ 500 1650 1200 300 120 385 2 ×3.7 2 ×70 450 100 250 0-20 250 2180 1340 2385 4300
CBB-60/2050D★ 600 2050 1500 300 120 385 2 ×3.7 2 ×70 450 100 250 0-20 250 2680 1340 2385 4600
CBB-70/2500D 700 2500 2000 300 120 400 2 ×3.7 2 ×70 450 200 250 0-20 250 2990 1370 2385 5900

Note: 1 The workbench with ★ in the upper right corner has no mechanical compensation device

Details

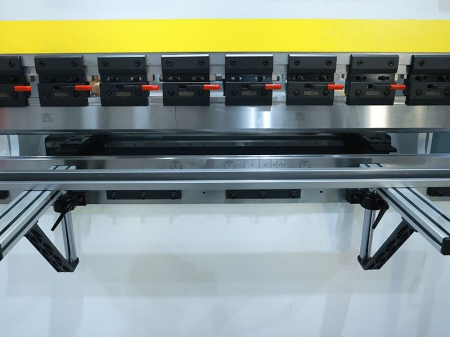

  • Vertical Loading and Unloading Quick Clamps

    Equipped with precision quick clamps, it effectively reduces tooling changeover time, improves production efficiency, and has a higher load-bearing capacity.

  • Precise and stable backgauge structure

    Dual linear guide rail structure ensures the positioning accuracy. Multi-level stop design increases the positioning range.

  • Easy Backgauge structure

    Standard configuration for 30-50 ton model

  • Throat deformation compensation device

    Ensures bending accuracy and effectively prevents collision interference with non-standard workpieces through the detection unit.

  • Mechanical compensation device

    Equipped with a high-precision wedge compensation system controlled by a CNC system, it provides precise compensation to ensure stable bending accuracy.

  • Mobile front pallet

    It moves along the linear guide rail and can be stopped at any position, assisting in the bending work to make the process comfortable and efficient.

  • Dual-Servo Oil-Electric Hybrid Technology

    (Patent No.: 2017112435900)
    The dual servo oil-electric hybrid system operates quickly and smoothly, with a response speed that surpasses proportional valve control. This system also features low noise and high efficiency.

  • CNC system

    Switzerland CYBELEC CybTouch 8
    Switzerland Cybelec CT8 (standard on CBB-D models)

  • CNC system

    Switzerland CYBELEC CybTouch 12
    Switzerland Cybelec CT12 (standard on UBB-D models)
