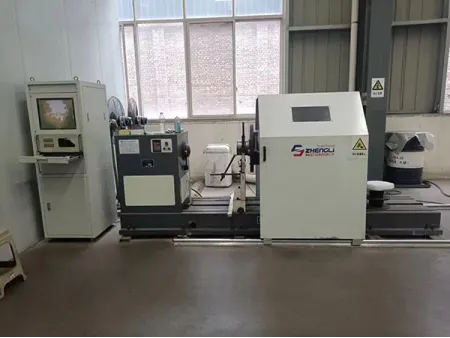

Horizontal Balancing Machine
Request a Quote

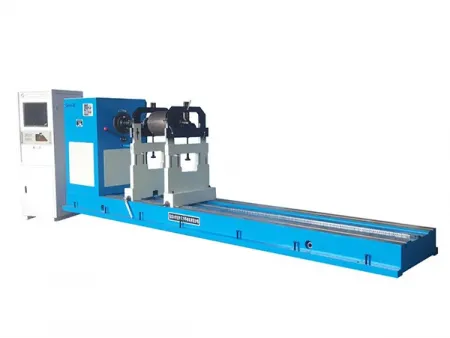

YYW-1600
Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 1800mm and weight of 50-1600kg
- Handles rotors up to 1600 kg and 1800 mm in diameter
- Stable operation with precise measurement results
- Adaptable for a wide range of industrial components
Applications
Widely used for dynamic balancing of medium and large components, these machines are commonly applied to motor rotors, pump rotors, centrifuge rotors, small and medium blower rotors, machine tool spindles, and textile winding rotors.
- Motor rotors balancing
- Pump rotors balancing
- Centrifuge rotors balancing
Specifications
| Workpiece weight | 50-1600kg |
| Max. workpiece diameter | Ø1800mm |
| Journal diameter of workpiece | Ø15-240mm |
| Distance between two bearing supports | 160-2000mm |
| Balancing speed | 350/525/800/1200r/min |
| Min. achievable residual unbalance (eMar) | 1g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
Features
- Uses a combination of universal joint drive and AC motor for stable transmission.
- Before starting, operators only need to set parameters such as the distance between correction planes, the distance from the correction planes to the supports, and the correction plane radius.
- With these adjustments, the system can display both unbalance value and phase accurately in a single run.
Examples of Workpieces Our Machines Can Balance
- Corn threshing machine knife shafts
- Standard rotors
