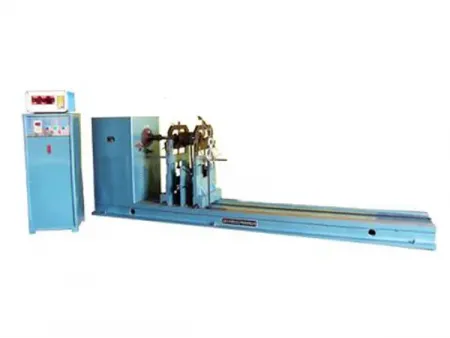

Horizontal Balancing Machine
Request a Quote
YYWQ-1000/YYWQ-2000
Hard-bearing balancing machine (universal joint belt drive) for workpiece with diameter of up to 1800mm and weight of 20-2000kg
- Horizontal hard-bearing balancing machine with dual-drive design combining universal joint and belt drive.
- Capable of handling large rotors up to 1800 mm in diameter and 2000 kg in weight.
- Used in various industries, including motors, fans, printing machinery, petroleum equipment, and paper production.
- Can be used in both manufacturing and repair workshops, as well as for secondary inspection tasks.
Applications
Widely used for dynamic balancing of fan rotors, agricultural machinery rotors, motor rotors, rolls, drums, crankshafts, and centrifuge components, ensuring stable performance and reliable correction across different applications.
- Motor rotors balancing
- Industrial drums balancing
- Crankshafts balancing
Specifications
| Model | | | |
| Workpiece weight | Belt drive | 20-500kg | 30-800kg |
| Universal joint drive | 60-1000kg | 100-2000kg | |
| Max. workpiece diameter | Ø1600mm | Ø1800mm | |
| Journal diameter of workpiece | Standard roller carriage | Ø15-120mm | Ø15-120mm |
| Optional roller carriage | Ø120-240mm | Ø120-240mm | |
| Distance between two bearing supports | 2000mm | 3000mm | |
| Balancing speed | Belt drive | 300-3000r/min | 300-3000r/min |
| Universal joint drive | 220-1000r/min | 220-900r/min | |
| Min. achievable residual unbalance (eMar) | Belt drive | 0.5g.mm/kg | 0.5g.mm/kg |
| Universal joint drive | 1g.mm/kg | 1g.mm/kg | |
| Unbalance reduction ratio (URR) | ≥90% | ≥90% | |
| Motor power | Belt drive | 2.2kW | 3.0kW |
| Universal joint drive | 7.5kW | 7.5kW | |
Features
- For smaller workpieces, the belt drive can be used to achieve higher accuracy. For larger rotors, the universal joint drive provides stronger torque and safer operation.
- Even though the balancing machine works with two drive methods, only one measuring system is needed. This keeps costs down and makes daily operation easier.
- It combines the functions of both YYW and YYQ horizontal balancing machines, giving users more flexibility in one unit.
Examples of Workpieces Our Machines Can Balance
- Standard rotors
- Knife shafts for straw returning machines

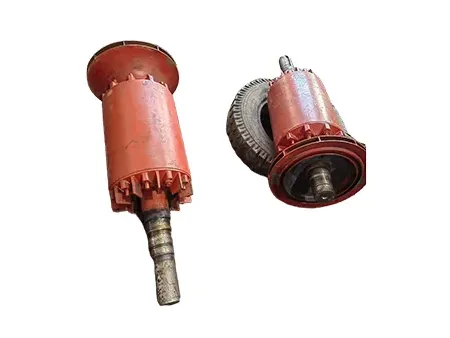

- Motor rotors
