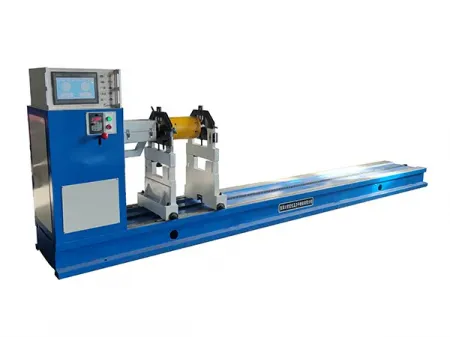

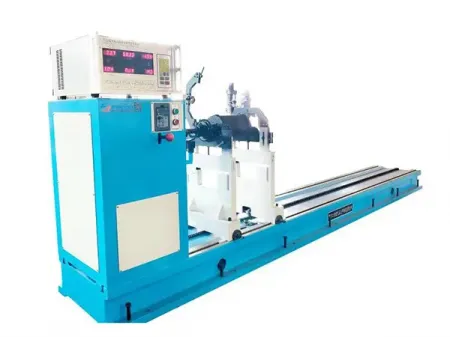

YYW-500

Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 1400mm and weight of 8-500kg

Horizontal hard-bearing balancing machine with roller supports and universal joint drive
Machine bed made from a single casting for high strength and stability
Suitable for motors, fans, agricultural machinery, and textile equipment
Supports single-plane, dual-plane, and multi-plane balancing measurements
Multiple measuring methods and functions available, including parameter input, preview, testing, result storage, and printing

Applications

This model is suitable for dynamic balancing of long-shaft components and a wide range of rotors, including motor rotors, pump and fan impellers, separator rotors, oil press rotors, rollers, paperboard machine rotors, as well as crushers, straw returning machines, and corn harvesters.

Motor rotors balancing
Pump impellers balancing
Fan impellers balancing

Specifications

Workpiece weight	8-500kg
Max. workpiece diameter	Ø1400mm
Distance between two bearing supports	80-2500mm
Journal diameter of workpiece	Ø10-Ø90mm
Balancing speed	Stepless speed control
Min. achievable residual unbalance (eMar)	≤1g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Can be equipped with the ZL-220 (digital display type) or the ZL-210 (touch screen type) dynamic balancing measuring system. Both are designed for fast and accurate unbalance detection.
These measuring systems use large-scale integrated circuits, allowing results to be displayed within five seconds. Unbalance values and phase are shown directly in grams and degrees.
Even after the rotor has stopped, the system can switch between light and heavy rotors, with automatic memory that simplifies operation.
An optional ZL-210 industrial PC measuring system can also be configured, with printer support for convenient output and storage of test data.

Examples of Workpieces Our Machines Can Balance

Agricultural rotors
Knife shafts for straw returning machines
Slurry pump impellers
Corn threshing machine rotors
Corn harvester rotors
Basket screens
Mixer shafts for plastic machinery
