- Product Standard: Q/EFR/J 1.1-2023
- Certifications: CE certificate, Chinese technical letters patent
- Size: 1760±20*285*116 mm
- Rated Power: 400 W
- Peak Power: 450 W

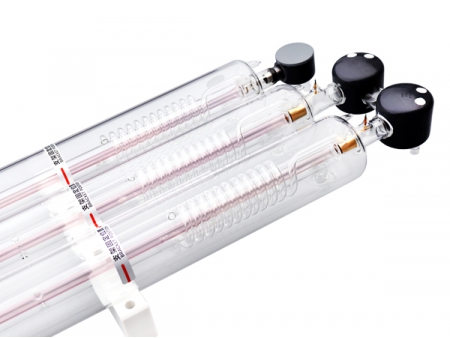

X450 Series CO₂ Laser Tube
Request a Quote
Parameters
| Model | Size | Output Power | Peak Power | Warranty Period | Catalyst |
| X450 | 1760*285*116mm | 400W | 450W | 360 days | yes |
Features
- Single-tube and multi-tube output can be freely switched, and the output power can be adjusted within the range of 50W to rated power.
- A dedicated power supply is configured and the actual output power is adjustable (dedicated power supply and conventional power supply are used together).
- Cavity mirrors and laser lens water cooling system are independently developed, and II-VI total reflector is made according to international optical standards at our manufacturing plant in Singapore. This ensures highly efficient output power and less power fluctuation, significantly improving the cutting speed and cutting thickness for both metallic and non-metallic materials.
- The optimal structure design of U-shaped resonator makes the beam more focused and efficient, resulting in a stable output of high power efficiency.
- Advanced glass-to-metal sealing technology completely solves the problem of deformation of the carbon dioxide laser resonator, ensuring exceptional stability while greatly improving the utilization value.
Operating Condition
- Cooling method: Water cooling
- Cooling liquid: clean water
- Flow rate: 3-5L/min
- Standard water temperature: 10℃-40℃
- Ambient temperature: 2℃ -40℃
- Ambient humidity: 10-60%
Package Size
| Model | Packing | Dimensions (L*W*H)(cm) | Net Weight (kg) | Gross Weight (kg) |
| X450 | Single Packing | 192*41*34 | 11 | 19 |
Applications
This CO₂ laser tube can be used in laser cutting machines, laser engraving machines and laser marking machines, and suitable for processing non-metal and thin metal materials. It can find extensive applications in printing & packaging, advertisement, furniture, shoemaking, sheet metal processing and other industries.

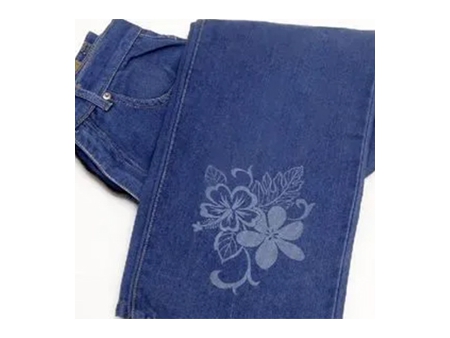

- Laser Engraving Fabric

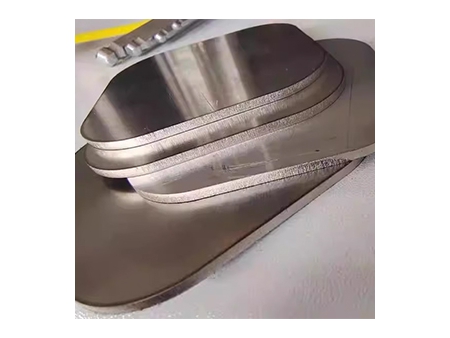

- Laser Cutting Metal

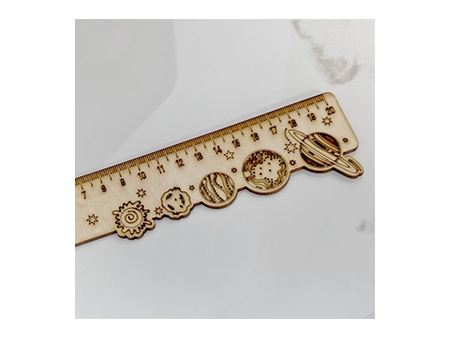

- Laser Engraving and Cutting Wood

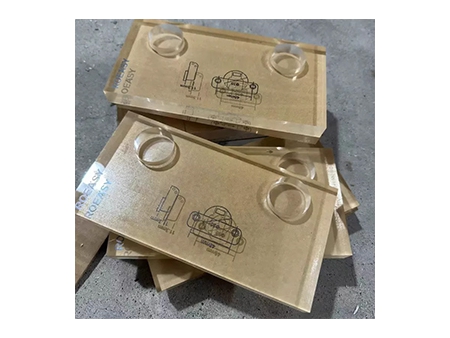

- Laser Cutting Acrylic

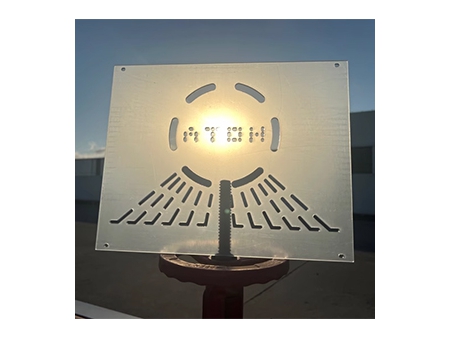

- Laser Engraving and Cutting Acrylic

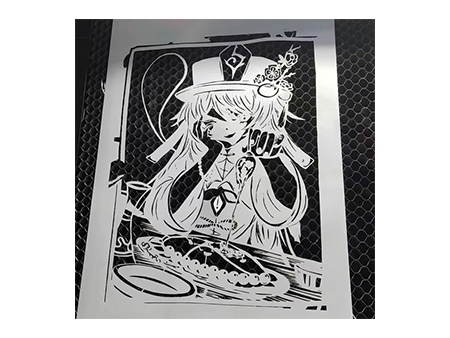

- Laser Cutting Paper
