Semi-Automatic Capsule Filling Machine, CGN-208D
Request a Quote

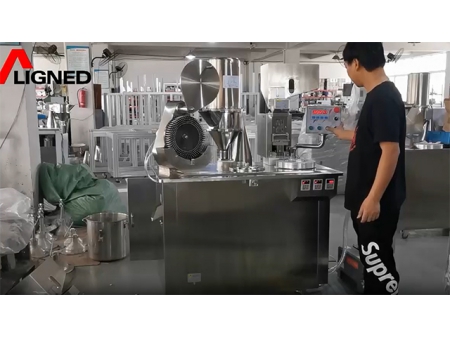

CGN-208D series semi-automatic capsule filling machine is suitable for filling capsules with powder or granules in pharmaceutical and health care industry. The capsule filler features independent stations for empty capsule feeding, powder feeding manually operated and capsule closing. Using variable speed control ensures precise powder feeding with the ease. Made using stainless steel, the machine body and worktable meet high hygienic requirements according to the GMP standards.
Technical Specifications
| Model | |
| Replacement of die roll | 5-8mins (for beginners) |
| Production Capacity | 10000-25000 capsules/hour (depending on capsule type) |
| Applicable capsule types | 000#, 00L#, 00#, 0#, 1#, 2#, 3#, 4#, Mechanism standard capsules |
| Filling material | Without sticky and wet powder, small granules |
| Total power | 4.0kw |
| Air pressure | 0.03m^3/min 0.6Mpa |
| Machine dimension | 1140*700*1630mm |
| Packing dimension | 1650*800*1750mm |
| Net weight | 350kg |
| Gross weight | 380kg |
