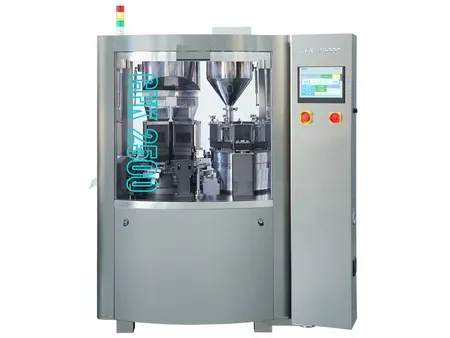

CKF2500C

Capsule filler for powders, granules and small pellets

150,000 Capsules Per Hour
000# to 5# Capsule Size

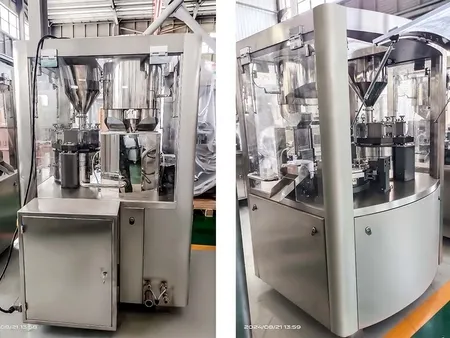

The automatic capsule filling machine features an intermittent rotary operation and a precision-designed dosing disc filling system. Engineered for efficiency and reliability, it can automatically complete processes such as capsule feeding, separation, filling, waste capsule rejection, locking, and finished capsule discharge. With its fully enclosed ten-station turntable and dual-row 18-hole design, this capsule machine is an intelligent solution for producing hard capsules, commonly used for encapsulating powders, granules, or pellets in the pharmaceutical and food industries.

Key Features

The ten-station turntable ensures cleanliness, prevents contamination, and provides stable, high-precision operation.

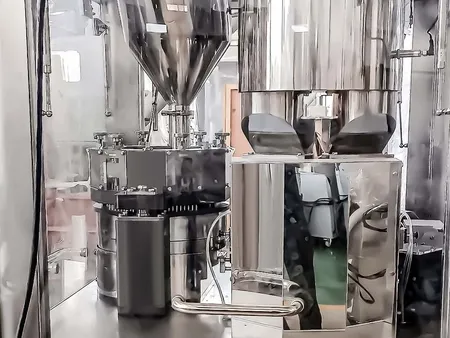

The three-dimensional dosing disc adjustment uniformly minimizes the gap between the dosing disc and the copper ring, reducing powder leakage and ensuring precise filling accuracy.
The high-precision transmission system reduces machine vibrations, enhances stability, and extends its lifespan.
Modular powder filling mechanism is easy to disassemble and clean, offering enhanced convenience.
The powder feeding device is newly designed for easy disassembly and cleaning, ensuring efficient powder management.
Removes fine dust during capsule locking for improved cleanliness and product quality.
Prevents sticky powder buildup on mold surfaces and cavities, ensuring smooth capsule removal and improving capsule loading efficiency.

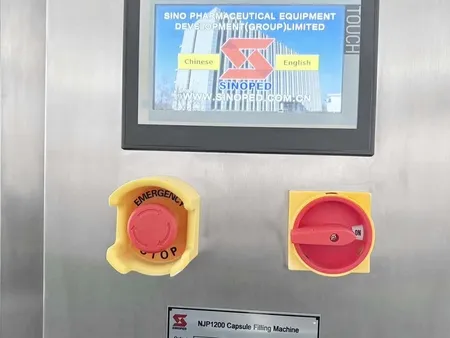

A dustproof, visually appealing human-machine user friendly interface provides full functionality and easy operation.

Specifications

Production Capacity	150,000pc/h
Machine Weight	1500kg
Machine Dimensions	1175( 382)×1230×1955mm
Power Supply	380/220V, 50Hz
Motor Power	8kW (standard)
Number of Segment Bores	18 bores in two rows
Vacuum Requirements	Pumping rate: 72m³/h Pressure: -0.03 to -0.05MPa
Dust Collection	210m³/h, 20Kpa
Noise	< 75dB(A)
Filling Percentage	Empty capsule 99.8% Full capsule 99.8%
Applicable Capsule Size	000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#
Filling Error	±2.5% to ±3.5%
