8kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)
LCF08A
Intelligent information auto focus laser cutting head for processing metal tubes and profiles with power ratings of up to 8kW

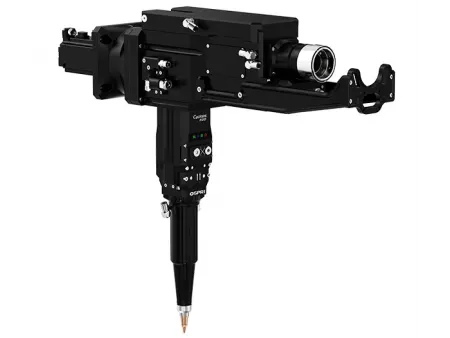

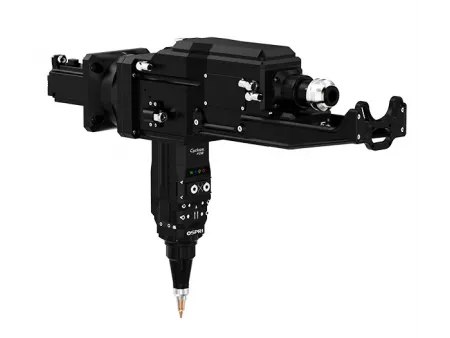

Front laser interface/connector, figure 1 without mounting bracket , figure 2 with mounting bracket

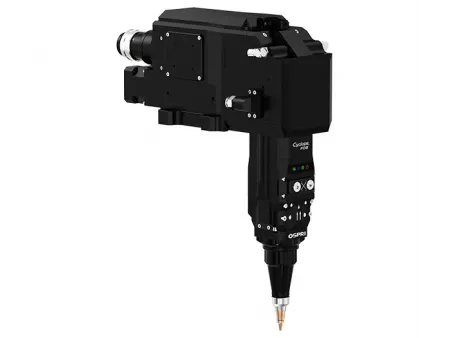

Rear laser interface/connector, figure 1 without mounting bracket, figure 2 with mounting bracket
These 8 kW right-angle, single-pendulum laser heads run on side-entry tube/profile cutting machines or robotic cells and cut carbon steel, stainless, and aluminum. A long-range capacitive follower holds standoff on round, square/rectangular tubes and structural shapes (angle, channel, H-beam); collision protection resets quickly after bumps, and reinforced signal lines issue timely alarms, so quality stays steady and service is quick with front access and a slide-out protective window. These heads are used to cut tube and profile components such as frames, guardrails, furniture tubing, and chassis sections.
| Type | Auto Focus Fiber Laser Cutting Head |
| Model | LCF08A1/LCF08A2 |
| Interface Type | QBH, G5 |
| Wavelength | 1064±10nm |
| Rated Power | ≤8kW |
| Focal Length | 200mm/250mm |
| Collimation Length | 100mm |
| Focusing Range | -35mm~ 30mm / -50mm~ 50mm |
| Centering Adjustment Range | ±1.5mm |
| Focusing Speed | 400mm/s |
| Repeated Positioning Accuracy of Focusing Axis | 0.05mm |
| A-axis Movement Range | ±45° |
| Rated Rotation Speed | 30r/min |
| Angular Acceleration | 240rad/s² |
| Positioning Accuracy | 1arcmin |
| Auxiliary Gas Pressure | ≤3MPa |
| Weight | 9kg |
Used on tube and profile cutting systems for round, square/rectangular tube and structural sections such as angle, channel, and H-beam. The materials that can be processed with the single pendulum right angle fiber laser cutting heads include carbon steel and stainless steel, with stable performance within the 8 kW range.
500 mm bevel cutting capability ensures smooth processing of large structural profiles
Built-in laser nozzle sensor for non-destructive collision protection, allowing rapid recovery and uninterrupted production
Equipped with an integrated capacitance amplifier for fast response and low interference, ensuring precise and stable cutting performance
Provides early warnings for leakage or low pressure of air, ensuring continuous processing and preventing downtime
Seamless connection with CNC systems for synchronized control and integrated machine performance
