15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)
LCF15A
Intelligent information auto focus laser cutting head for processing metal tubes and profiles with power ratings of up to 15kW

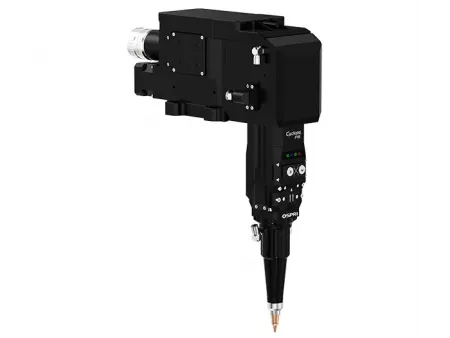

Front laser interface/connector, figure 1 with mounting bracket, figure 2 without mounting bracket

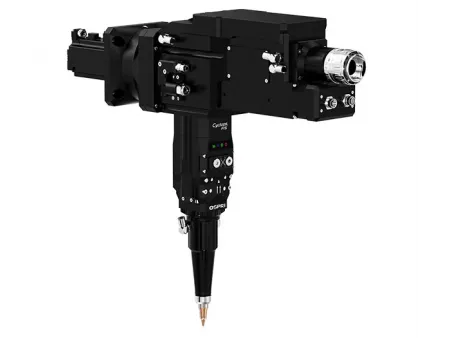

Rear laser interface/connector, figure 1 without mounting bracket, figure 2 with mounting bracket
Designed for processing metal tubes and structural profiles, this fiber laser cutting head provides high-performance with power ratings of up to 15kW. An extended sensor makes it easily adaptable to different profile types and ensures stable cutting performance. The built-in collision protection system allows for rapid recovery after impact, while enhanced signal feedback provides timely alerts to maintain consistent quality and reduce downtime. Its design simplifies after-sales maintenance, making it reliable for long-term industrial use.
| Type | Auto Focus Fiber Laser Cutting Head |
| Model | LCF15A1/LCF15A2 |
| Interface Type | Q , QD, LOE3.1, LOE3.2 |
| Wavelength | 1064±10nm |
| Rated Power | ≤15kW |
| Focal Length | 250mm/300mm |
| Collimation Length | 100mm |
| Focusing Range | -50mm~ 50mm / -70mm~ 70mm |
| Centering Adjustment Range | ±1.5mm |
| Focusing Speed | 400mm/s |
| Repeated Positioning Accuracy of Focusing Axis | 0.05mm |
| A-axis Movement Range | ±45° |
| Rated Rotation Speed | 30r/min |
| Positioning Accuracy | 1arcmin |
| Auxiliary Gas Pressure | ≤3MPa |
| Weight | 9.5kg |
This right-angle fiber laser cutting head is optimized for tube and profile cutting, including round tubes, square tubes, and H-beams. It is suitable for processing carbon steel, stainless steel, and other common industrial metals.
- 8mm carbon steel, 12kW - 8 m/min, nitrogen cutting
- 5mm angle iron, 3kW
- 6mm carbon steel square tube, 2.4kW
500 mm bevel cutting capability ensures smooth processing of large structural profiles
Built-in laser nozzle sensor for non-destructive collision protection, allowing rapid recovery and uninterrupted production
Equipped with an integrated capacitance amplifier for fast response and low interference, ensuring precise and stable cutting performance
Provides early warnings for leakage or low pressure of air, ensuring continuous processing and preventing downtime
Seamless connection with CNC systems for synchronized control and integrated machine performance
| Collimating protective lens | PMD32T2DS |
| Focusing protective lens | PMD34T5DS |
| Cutting protective lens | PMD34T5DS |
| Collimating lens | DF100D37DS |
| Focusing lens | DF200D37DS, SF250D37DS, SF300D37DS |
| Seal ring | 38.6×30.5×3.8， 38.6×30.5×3.8 |
| Ceramic ring | FC-18 |
| Nozzle | FSN21 Series |
