15kW Fiber Laser Bevel Cutting Head
Request a Quote



                                GH15B
Intelligent information auto focus laser cutting head for processing thick metal plates with power ratings of up to 15kW
Focal length 250m, pointed nozzle

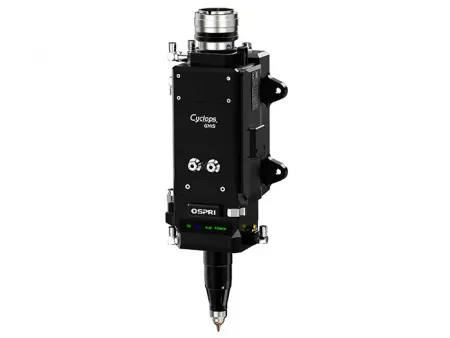

 GH15B
Intelligent information auto focus laser cutting head for processing thick metal plates with power ratings of up to 15kW
This high-power smart fiber laser cutting head is designed for processing thick metal plates. Equipped with 5G communication, it enables real-time monitoring of gas pressure leakage, lens contamination, and nozzle temperature, providing timely warnings and alarms. The built-in collision protection system ensures immediate shutdown in case of impact, reducing maintenance needs and enhancing overall cutting efficiency for heavy plate operations.
Specifications
 | Type | Auto Focus Smart Fiber Laser Cutting Head |
| Model | GH15B |
| Interface Type | QBH,QD,Q ,LOE/QF-D |
| Wavelength | 1080±10nm |
| Rated Power | ≤15kW |
| Focal Length | 200mm/250mm/300mm |
| Collimation Length | 100mm |
| Focusing Range | -39mm~ 30mm |
| Centering Adjustment Range | ±1.5mm |
| Focusing Speed | 200mm/s |
| Auxiliary Gas Pressure | ≤3MPa |
| Weight | 7kg |
Application
 This auto-focus laser cutting head is applied in thick plate cutting and is suitable for processing materials such as carbon steel, copper, aluminum, and galvanized sheet.
- Defocus laser cutting of aluminum profiles
- 22mm carbon steel, 12kW - 1.8 m/min, oxygen negative defocus cutting
- 12mm carbon steel, 12kW - 4.5 m/min, air cutting
