30kW Fiber Laser Bevel Cutting Head
GH30B

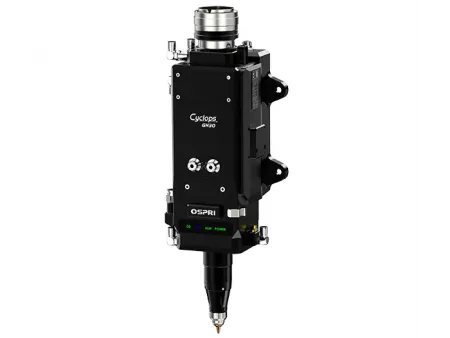

Intelligent information auto focus laser cutting head for processing thick metal plates with power ratings of up to 30kW
GH30B
Intelligent information auto focus laser cutting head for processing thick metal plates with power ratings of up to 30kW
This high-power smart fiber laser cutting head is designed for thick metal plate processing. Equipped with integrated 5G communication, it enables real-time monitoring of gas pressure leakage, lens contamination, and nozzle temperature. These functions provide timely warnings and automatic shutdown to prevent faults, reduce maintenance needs, and ensure consistent cutting performance. Collision protection is built in to allow quick recovery, minimizing downtime and improving overall efficiency in heavy-duty laser cutting operations.

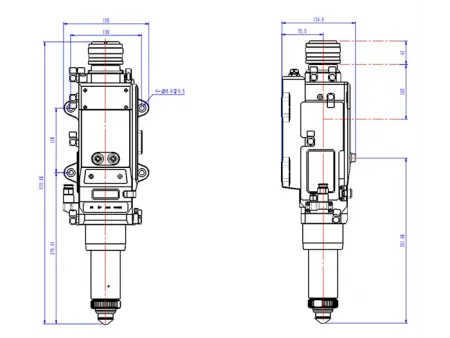

| Type | Auto Focus Smart Fiber Laser Cutting Head |
| Model | LCH30B0 |
| Interface Type | QBH, QD, Q , LOE/QF-D |
| Wavelength | 1080±10nm |
| Rated Power | ≤30kW |
| Focal Length | 250mm/300mm |
| Collimation Length | 100mm |
| Focusing Range | -39mm~ 30mm |
| Centering Adjustment Range | ±1.5mm |
| Focusing Speed | 200mm/s |
| Auxiliary Gas Pressure | ≤3MPa |
| Weight | 7.5kg (100/300 flat nozzle) |
This auto focus laser cutting head is optimized for thick metal plate cutting across a range of metals, including carbon steel, copper, aluminum, and galvanized sheet.
- Cutting 40mm carbon steel30kW
- Cutting 40mm carbon steel30kW
- Cutting 35mm carbon steel 30kW
- Cutting 35mm carbon steel 30kW
High-temperature alarm automatically issues a shutdown command that ensures timely stop and alerts the operator to troubleshoot, preventing processing defects.
Continuous transmission of nozzle temperature data dynamically adjusts cutting height maintains a consistent distance between nozzle and workpiece for stable cutting quality.
Real-time lens temperature control allows automatic focus adjustment that prevents focus drift caused by lens heating, ensuring uniform cutting performance.
Alarms are triggered if cutting gas pressure is abnormal, preventing damage and poor cutting caused by low or missing gas pressure.
Detects differences between actual and set cutting gas pressure, and calibrates pressure automatically to ensure consistent cutting quality and protecting the head.
Issues an alarm if the laser protection window seal fails and reminds operators to service or replace parts, preventing internal lens contamination.
Built-in sensor with dedicated blowing assembly that protects the laser head upon collision, while triggering an immediate shutdown signal.
Monitors piercing results in real time. Cutting begins immediately after penetration, eliminating delays and boosting productivity.
Alerts when lenses become contaminated, with both warning and shutdown modes. This prevents poor cutting quality and laser head damage by ensuring timely lens replacement.
| Collimating protective lens | PMD21.5T2DS，PMD32T2DS |
| Focusing protective lens | PMD34T5DS |
| Cutting protective lens | PMD34T5DS |
| Collimating lens | NF100D37DS |
| Focusing lens | SF250D37DS，SF300D37DS |
| Seal ring | 36.5*28.5*3.8，47*43*2.1，38.6*30.5*3.8，38.6*30.5*3.8 |
| Ceramic ring | FC-17（Flat），FC-15（Pointed） |
| Nozzle | FSN20 Series（Flat），FSN07 Series（Pointed），FSN16 Series（Bevel） |
