Combination fiber laser machine for metal sheet and tube cutting

RJ-3015PT

RJ-3015PT fiber laser cutting machine is capable of cutting both metal sheets and tubes. Full protection cover ensures safe and eco-friendly working environment, while giving a superior look. The exchange worktable makes material loading and unloading easier and faster, providing high working efficiency.

Play Video
Specifications
Cutting area
2500×6000mm
Laser power
3000-20000W (optional)
Max. cutting speed
110m/min
Max. acceleration
1.5G
Repositioning accuracy
±0.02mm
Power supply
AC 380V, 3-phase, 50/60Hz
Tube cutting diameter
15-220mm

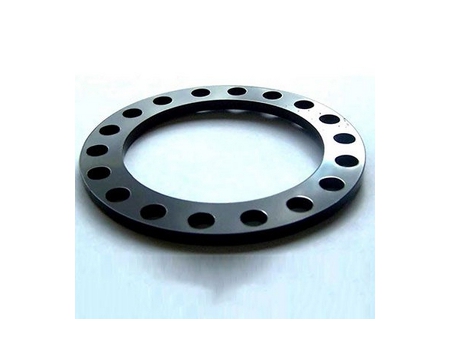

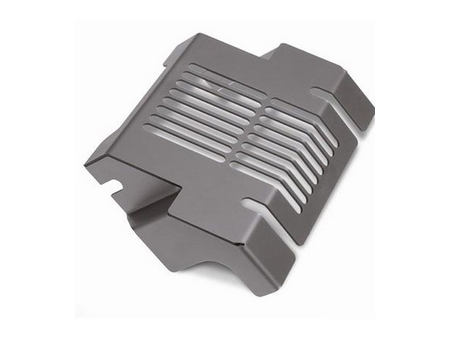

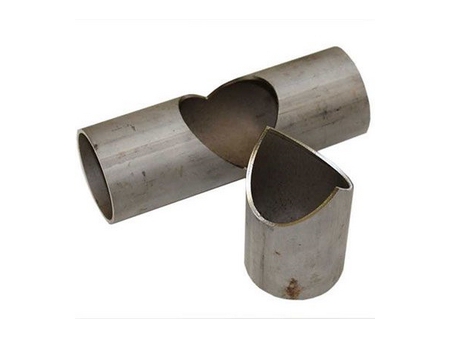

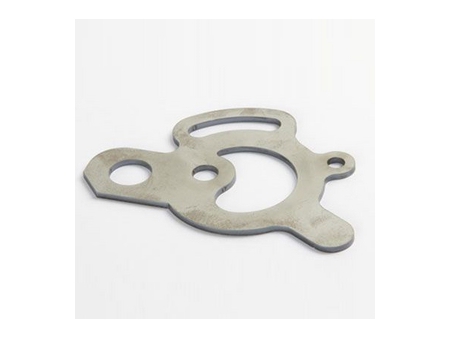

Laser Cutting Samples
Machine Features
  • Heavy Duty Welded Bed

    The machine bed is constructed with high-strength carbon structural steel by welding. The welded bed has undergone a 600°C heat treatment, efficiently ensuring high durability of structure and enabling it able to last for 20 years without deformation.

  • Fourth Generation of Aviation Aluminum Crossbeam

    The crossbeam is made from aviation aluminum alloy that has good dynamic performance. The beam is designed with honeycomb structure to provide better structural strength.

  • Exchange Worktable

    The fiber laser cutting machine adopts exchange platform, greatly shortening the loading time and maximizing the working efficiency.

  • Auto Focus Laser Cutting Head

    The laser cutting head allows for automatically adjusting focus lens to an appropriate position by software, thus achieving automatic cutting and perforating of metals with different thickness.

  • Raycus Laser Source

    This laser source directly controls all types of fiber laser functions, realizing synchronous control of laser source.

  • Independent Control Cabinet

    The control cabinet features a design of dustproof and vibration resistance, efficiently prolonging the service life of electrical components.

  • IPAD Screen Design

    Tempered glass panel design provides high definition effect and smooth operation.

  • Chuck

    The chuck permits quick adjusting and precise positioning of metal tubes with different sizes, providing good adaptability. The rear chuck features extended length, enabling the cutting tailing to be further shortened therefore maximizing utilization rate of the material.

  • Fractional Automatic Support

    The automatic tube support system allows for rapid loading of metal tubes and reducing tube oscillation, therefore ensuring high precision of cutting.
