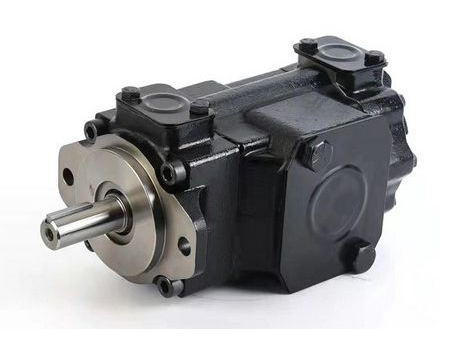

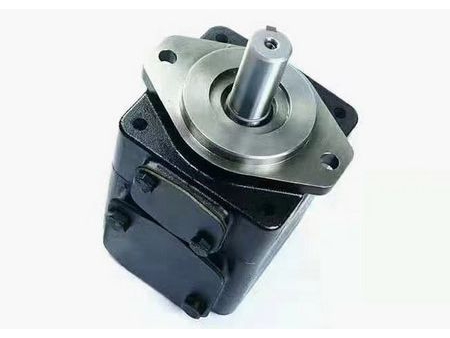

Dowel Pin Type Vane Pump, T6 Series
Request a Quote
T6 series hydraulic pumps are dowel pin type vane pumps with high pressure and high performance, suitable for plastic machinery, die-casting machinery, metallurgical machinery, oil refining machinery, pressure machinery, engineering machinery and marine machinery.
- With dowel pin vane structure, operating under higher pressure and lower noise, providing longer service life.
- Suitable for the hydraulic medium of a wide range of viscosity. It can be started at low temperatures and work at high temperatures.
- Bilabial structure vanes, oil pollution resistant, operating under wide range of rotating speeds.
Technical Parameters
Series | Displacement code (USgpm) | Theoretical displacement (mL/r) | Max. pressure (MPa) | Max. speed (r/min) | Min. speed (r/min) | ||||||
Anti-wear hydraulic fluid | General hydraulic fluid or phospholipid | Water glycol or water-in-oil emulsion | General hydraulic fluid or anti-wear hydraulic fluid | Water glycol fluid,phospholipid,or water-in-oil emulsions | |||||||
Intermittent | Continuous | Intermittent | Continuous | Intermittent | Continuous | ||||||
| 03 | 10.8 | 28 | 24.5 | 21 | 17.5 | 17.5 | 14 | 2600 | 1800 | 600 |
05 | 17.2 | ||||||||||
08 | 21.3 | ||||||||||
10 | 26.4 | ||||||||||
12 | 34.1 | ||||||||||
14 | 37.1 | ||||||||||
17 | 46.0 | ||||||||||
20 | 58.3 | ||||||||||
22 | 70.3 | ||||||||||
25 | 79.3 | ||||||||||
28 | 88.8 | 21 | 16 | 16 | 2500 | ||||||
31 | 100.0 | ||||||||||
| 14 | 47.6 | 24.5 | 21 | 21 | 17.5 | 17.5 | 14 | 2500 | 1800 | 600 |
17 | 58.2 | ||||||||||
20 | 66.0 | ||||||||||
24 | 79.5 | ||||||||||
28 | 89.7 | ||||||||||
31 | 98.3 | ||||||||||
35 | 111.0 | ||||||||||
38 | 120.3 | ||||||||||
42 | 136.0 | 2200 | |||||||||
45 | 145.7 | ||||||||||
50 | 158 | 21 | 16 | 16 | |||||||
61 | 190.5 | 12 | 8 | 8 | 8 | 8 | 8 | ||||
| 42 | 132.3 | 24.5 | 21 | 21 | 17.5 | 17.5 | 14 | 2200 | 1800 | 600 |
45 | 142.4 | ||||||||||
50 | 158.5 | ||||||||||
52 | 164.8 | ||||||||||
57 | 179.8 | ||||||||||
62 | 196.7 | ||||||||||
66 | 213.3 | ||||||||||
72 | 227.1 | ||||||||||
85 | 269.0 | 9 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 2000 |
