THC100/THC400/THC410/THC700/THC900/THK-0302 Temperature Controller
Request a Quote
-
THC100
-

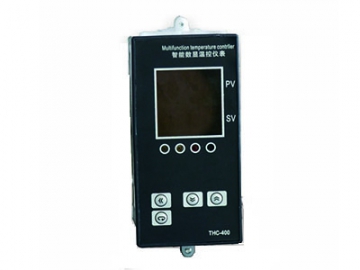

THC400
-

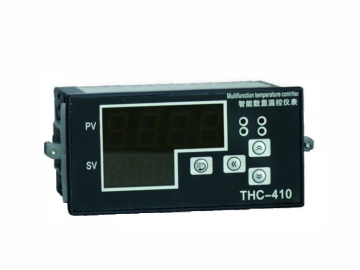

THC410
Specifications
- Measurement accuracy: ±0.5% FS
- Cold junction compensation error: ±2 ℃(software correction in the range of 0~50 ℃)
- Resolution: 14Bit
- Sampling period: 0.5Secretary
- Power supply: AC85-AC265V 50Hz
- Control method: Adopt industrial and expert self-tuning PID technology, which has faster temperature control, faster response and less overshoot than traditional PID control.
- high precision and other features.
- Insulation resistance: >500MΩ (500VDC)
- Insulation strength: 1500VAC / 1 minute
- Power consumption: <10VA
- Use environment: 0~50℃, 30~85% RH, no corrosive gas
-

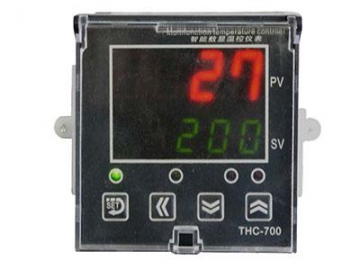

THC700
-

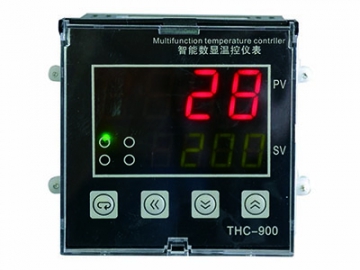

THC900
-

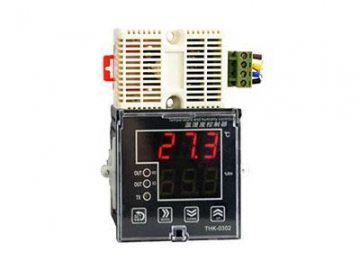

THK-0302
Specifications
- Measurement accuracy: ±0.5% FS
- Cold junction compensation error: ±2 ℃(software correction in the range of 0~50 ℃)
- Resolution: 14Bit
- Sampling period: 0.5Secretary
- Power supply: AC85-AC265V 50Hz
- Control method: Adopt industrial and expert self-tuning PID technology, which has faster temperature control, faster response and less overshoot than traditional PID control.
- high precision and other features.
- Insulation resistance: >500MΩ (500VDC)
- Insulation strength: 1500VAC / 1 minute
- Power consumption: <10VA
- Use environment: 0~50℃, 30~85% RH, no corrosive gas
