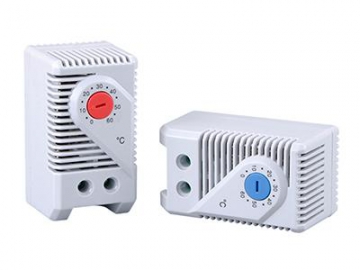

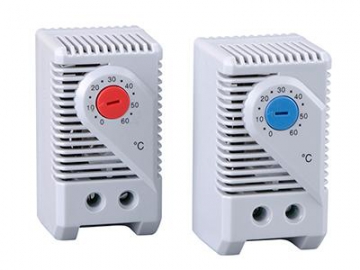

KT Series Temperature Controller
Request a Quote
Features
- Wide temperature range
- Small size
- Easy to install
- High sensitivity
- The normally open temperature controller is used for controlling the fan. When the actual space temperature is higher than the set temperature, the fan will be activated. When the space temperature is at or lower than the set temperature, the fan will not operate.
Parameters
| Switch temperature difference | 7K |
| Sensor | thermostatic bimetal |
| Contact | snap-action contact |
| Contact resistance | < 10mΩ |
| Lifetime | > 100000 cycles |
| Max. switch capacity | 250VAC. 10(2)A 120VAC, 15(2)A DC 30W |
| EMC | Acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 |
| Connection | dipolar terminal, 2.5mm2 wire |
| Installation | 35mm DIN rail |
| Housing material | plastic UL94, standard V-0 fire protection level |
| Size | 60 x 33 x 43mm |
| Weight | 40g |
| Operating/store temperature | -20~+80°C (-4~+176 °F) |
| Protection | IP20 |

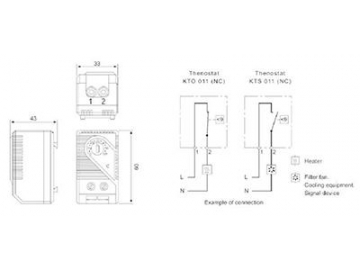

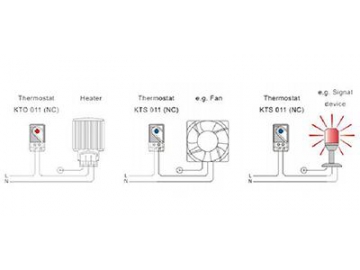

Wiring diagram & Dimension
