X-R4 High Performance Variable Helix End Mill - Square End - Chamfer - 4 Flutes - Long Neck

X-R4  High Performance Variable Helix End Mill - Square End - Chamfer - 4 Flutes - Long Neck
X-R4  High Performance Variable Helix End Mill - Square End - Chamfer - 4 Flutes - Long Neck
X-R4  High Performance Variable Helix End Mill - Square End - Chamfer - 4 Flutes - Long Neck
Request a Quote
Request a quote

Unit: mm

Order CodeCutting Diameter (D)Length of Cut (Lc)Corner Radius (r)Overall Length (L)Shank Diameter (d)Type
X-R4-03003
390.3507A
X-R4-03005
390.5504A
X-R4-04003
4110.350B
X-R4-04005
4110.5504B
X-R4-05003
5130.3506A
X-R4-05005
5130.5506A
X-R4-06005
6160.5506B
X-R4-06010
6161506B
X-R4-08005
8200.5608B
X-R4-08010
82 01608B
X-R4-10005
102 50.57510B
X-R4-10010
102 517510B
X-R4-10020
102 527510B
X-R4-12005
12300.57512B
X-R4-12010
123017512B
X-R4-12020
123027512B
X-R4-14020
143227514B
X-R4-16020
1636210016B

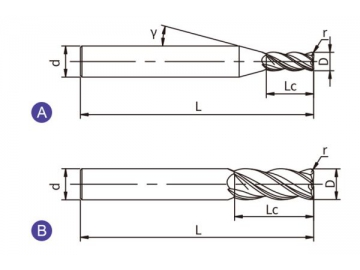

Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
