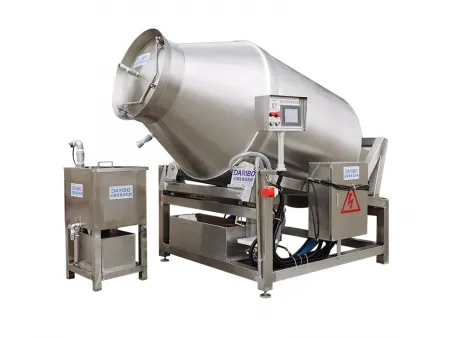

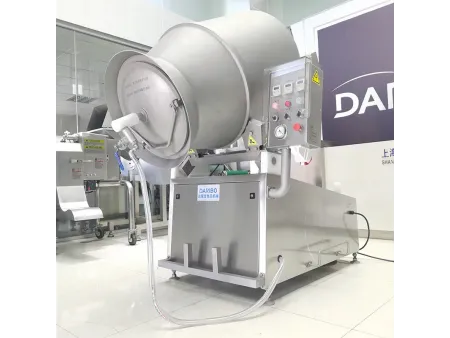

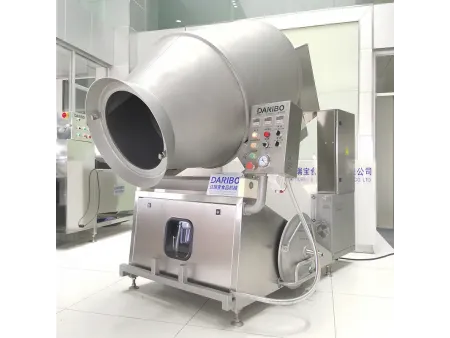

Tilted Vacuum Tumbler

Tilted Vacuum Tumbler
Request a Quote

Meat Processing Equipment

Vacuum meat tumbling machine for massaging meat in marinating process

  • Volume 350-1200L
  • Processing Capacity 220-720 kilograms per cycle

When meat is marinated effectively, flavor, texture, and quality are enhanced. Based on this approach, we designed our tilted vacuum tumblers to ensure seasonings are absorbed evenly, improving overall product consistency and efficiency in food processing. Manufactured from durable 304 stainless steel, its finely polished interior improves efficiency, while the sandblasted exterior reduces heat buildup, making it well-suited for demanding food production environments. Equipped with high-quality vacuum, hydraulic, and electrical components from trusted global brands, this machine for marination delivers reliable performance. Its compact, low-center design saves floor space and reduces height requirements, while adjustable speeds and precise vacuum controls make it versatile for various products.

Applications

Tilted vacuum tumblers are designed to handle a wide range of ingredients, from meats to marinades, sauces, and seasonings.

Tilted Vacuum Tumbler, DRB-GRY350L
  • Model: DRB-GRY350L
  • Voltage: 380V, 50Hz
  • Power: 2.6kW
  • Volume: 350L
  • Processing capacity: 220kg/cycle
  • Rotation speed: 2-12rpm
  • Dimensions (L×W×H): 1100×1700×1700mm
  • Weight: 350kg
Tilted Vacuum Tumbler, DRB-GRY750L
  • Model: DRB-GRY750L
  • Voltage: 380V, 50Hz
  • Power: 3.7kW
  • Volume: 750L
  • Processing capacity: 450kg/cycle
  • Rotation speed: 2-12rpm
  • Dimensions (L×W×H): 1260×1950×1680mm
  • Weight: 600kg
Tilted Vacuum Tumbler (Touch Screen Auto Opening), DRB-GRY800L
  • Model: DRB-GRY800L
  • Voltage: 380V, 50Hz
  • Power: 3.3kW
  • Volume: 800L
  • Processing capacity: 450kg/cycle
  • Rotation speed: 2-12rpm
  • Dimensions (L×W×H): 2240×1405×1710mm
  • Weight: 690kg
Tilted Vacuum Tumbler, DRB-GRY1200L
  • Model: DRB-GRY1200L
  • Voltage: 380V, 50Hz
  • Power: 4.8kW
  • Volume: 1200L
  • Processing capacity: 720kg/cycle
  • Rotation speed: 2-12rpm
  • Dimensions (L×W×H): 1350×2450×1730mm
  • Weight: 900kg
Features
  • Designed with a compact, low-center structure that saves floor space and reduces height requirements, making it suitable for production areas with limited space.
  • Compatible with loading systems for both solid and liquid ingredients, allowing for automatic feeding and increased operational efficiency.
  • Features a tilting drum that simplifies loading, ensures complete discharge, and allows for easy cleaning with minimal effort.
  • Offers adjustable rotation speeds ranging from 2 to 12 rpm, providing flexibility to meet various processing needs.
  • Incorporates a German vacuum sensor for precise monitoring and automatic maintenance of vacuum levels up to -0.085Mpa, ensuring consistent results.
  • Arrives fully assembled and ready to use, eliminating the need for additional installation and saving time during setup.
  • Optional touch screen controls and automated lid opening improve usability and reduce the physical effort required during operation.
