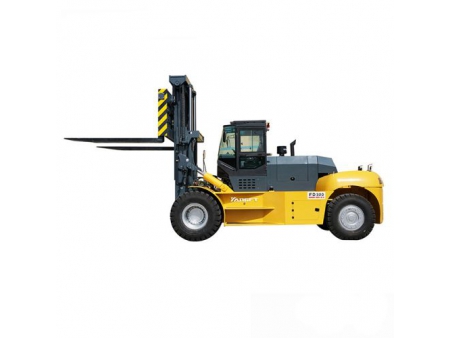

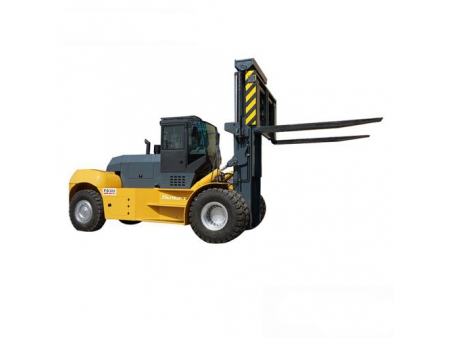

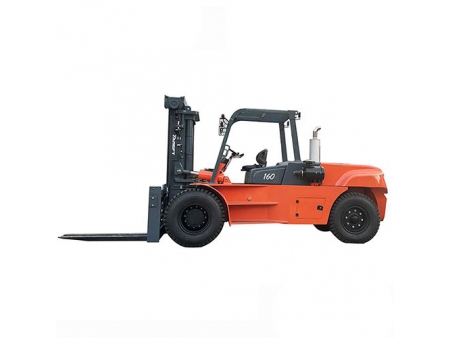

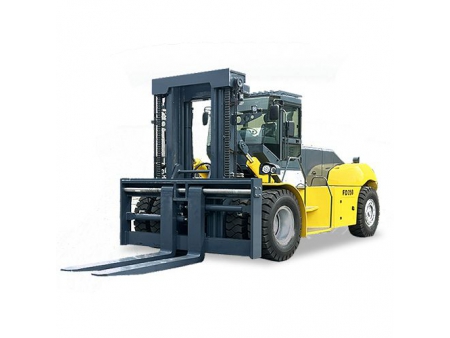

Diesel Forklift 12-50 Tonne
K Series
The heavy-duty 6-cylinder forklifts are capable of lifting materials up to 50 tons. With strong driving force, the forklifts deliver stable and outstanding material handling performance.
Equipped with a fuel-efficient turbocharged engine and lightweight, quick-cooling disc brakes, this forklift truck meets the standards required for heavy-duty forklifts. Its dual-pump hydraulic system reduces power consumption, maximizing the load-handling potential of high-capacity forklifts.
- 12000-500000 kg
- 4000 mm
- 23-26 km/h
- 4680-7730 mm
- Adopting a turbocharged engine, the forklifts consume less energy while enjoying powerful driving force and they have larger torque reserve.
- The disc brake features quick heat dissipation, light weight, a simple structure and easy adjustment. Therefore, they are heat-resistant in heavy-load conditions while delivering stable braking performance.
- The forklifts are equipped with dual hydraulic pumps which ensure strong power and stable performance.
- The braking system features a proven disc brake design, offering rapid cooling, lightweight structure, and easy adaptability. It delivers stable, high-performance braking, even under heavy loads and high temperatures.
- Equipped with a domestic brand transmission, this forklift truck provides high driving and traction capabilities.
- The hydraulic system features a dual-pump flow design, optimizing efficiency with lower power consumption and steady, reliable performance.
- Reinforced drive axle offers greater load capacity, combining stability, comfort, safety, and high performance.
Heavy material handling operation in airports, ports and train stations.
Engine (Optional)
Experience reliability and efficiency with optional advanced engine configurations from renowned brands such as ISUZU, Mitsubishi, Kubota, Yanmar and Euro3/5. These engines deliver efficient performance with environmental and cost benefits. They're designed for ease of maintenance and to increase productivity with minimum downtime.
Seat (Optional)
Featuring an OPS system and ergonomic design with multiple adjustment options, it reduces operator fatigue and ensures comfort over long shifts.
Mast (Optional)
Available with 2-3 stage standard masts and multi-stage full free lift masts, offering extensive customization options to meet diverse operational needs.
Load-Backrest
Equipped with a load-backrest, increases operational safety by preventing the load from slipping during handling.
Control System (Optional)
The integrated dashboard, combined with an ergonomically designed steering wheel, throttle, and brake system, ensures safe, convenient, and comfortable operation for the driver.
Overhead Guard
Designed with driver safety in mind, it also offers customizable width and height options to meet specific operational requirements.
Control Valve
With a well-thought-out design, this model offers straightforward, user-friendly operation and customizable options to meet diverse requirements.
Model | | | | | | | | | | | |||
Characteristics | Power | Diesel | |||||||||||
Capacity | kg | 12000 | 16000 | 20000 | 25000 | 30000 | 32000 | 35000 | 42000 | 46000 | 500000 | ||
Load Centre | mm | 600 | 900 | 900 | 1220 | 1220 | 1220 | 1250 | 1250 | 1250 | 1250 | ||
Lift Height | mm | 3000 | 3500 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | ||
Min. Turning Radius | mm | 4680 | 5340 | 5940 | 6480 | 6600 | 6800 | 6900 | 7730 | 7730 | 7730 | ||
Performance | Travel Speed | Load | km/h | 23 | 22 | 26 | 25 | 24 | 24 | 24 | 26 | 26 | 26 |
Lift Speed | Load | mm/s | 220 | 240 | 260 | 260 | 260 | 260 | 260 | 300 | 300 | 300 | |
Dimensions | Total Lenth | With Fork | mm | 6160 | 7530 | 8500 | 9040 | 9460 | 9460 | 9760 | 8170 | 8170 | 8170 |
Total Width | mm | 2250 | 2750 | 2930 | 3060 | 3060 | 3360 | 3360 | 3600 | 3600 | 3600 | ||
Mast Height | mm | 2950 | 3520 | 3930 | 3970 | 3970 | 4060 | 4150 | 5040 | 5040 | 5040 | ||
Chassis | Tyre | Front | 11.00-20-18PR | 12.00-24 | 14.00-24 | 14.00-24 | 14.00-24 | 16.00-25 | 14.00-24-32PR | 4X18.00-25-28PR | 4X18.00-25-28PR | 4X18.00-25-28PR | |
Rear | 10.00-20-18PR | 12.00-20 | 12.00-24 | 14.00-24 | 14.00-24 | 14.00-24 | 14.00-24-32PR | 2X16.00-25-28PR | 2X16.00-25-28PR | 2X16.00-25-28PR | |||
Wheelbase | mm | 2950 | 1600 | 4200 | 4400 | 4600 | 4800 | 4800 | 5500 | 5500 | 5500 | ||
Service Weight | NO LOAD | Kg | 15500 | 3880 | 30000 | 33500 | 36500 | 38000 | 38000 | 51000 | 56000 | 60000 | |
Power | Engine | Model | Yuchai | Yuchai | WeiChai | WeiChai | WeiChai | WeiChai | WeiChai | WeiChai | WeiChai | WeiChai | |
Cylinders | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
-
