U-Arm X-Ray Machine

Request a Quote

View All: http://medimaging-en.com/1-4-u-arm-x-ray-machine.html

SHO-UDX01 Medical Imaging

Digital radiography system with motorized swivel arm for simple patient positioning

The U-arm digital X-ray machine gives you high-quality imaging for head, chest, abdominal, lumbar, and limb examinations. Designed for versatility, it supports PA, LAT, and clinical static imaging, ensuring precise and reliable diagnostics for a variety of medical applications.

With its advanced digital image acquisition system, this machine provides exceptional image clarity while being simple and easy to operate. Whether you need it for routine diagnostic exams or specialized imaging, it offers multiple power options, 32kW & 400mA, 50kW & 630mA, 65kW & 800mA, and 80kW & 1000mA, so you can choose the best fit for your facility.

Specifications

Ambient Conditions
Ambient temperature	10℃ to 40℃
Relative humidity	30-75%
Atmospheric	70-106 kPa

X-Ray Generator
Model	SHO-UDX01 Series
Output power (kW)	32	50	65	80
Current (mA)	10-400m	10-630	10-800	10-1000
Voltage (kV)	40-150	40-150	40-150	40-150
mAs (mAs)	0.1-400	0.1-630	0.1-800	0.1-1000
Exposure time (ms)	1-6300
Focus size	1.0/2.0	0.6/1.2	0.6/1.2	0.6/1.2
APR program	Equipped
Intelligent protection system	It has self-protection system. It will give an alarm and check fault code.

X-Ray Tube
Anode type	Rotating Anode
Focal Spot value	0.6 mm / 1.2 mm
Maximum voltage	150 kV
Revolving speed of anode	2800 rpm
Inherent filtration	1.0 mmAl
Anode heat storage capacity	300 kHU
Maximum cooling rate of anode	870 W
Housing heat storage capacity	900 kJ

X-ray detector (Iray brand Flat Panel Detector)
Type	Amorphous Silicon
Scintillator	Cesium Iodide
Active Area	17×17 inch (43×43 cm)
Active Pixel	3072×3072
Pixel Pitch	139 um
A/D Conversion	16 bits
DQE	≧ 70%
Spatial Resolution	36 lp/cm
Acquisition time	≤ 2 s

Collimator
Type	Manual Collimator
Max. Window	440×440 mm (SID=100 cm)
Lamp	AC/DC 24 V, 5 W
Lamp timer	Automatic illumination with timer for lamp (30 s)
Inherent filtration	1.0 mmAl
Illuminant	LED

Grid
Densities	40 LP/CM
Ratios	10:1
Size	18”×18”
Focal distance	130 cm

Movement
Tube stand
U Arm rotation range	-15° to＋105°
U Arm vertical travel	1200 mm
SID range	1000-1800 mm
Detector rotation range	±45°
Mechanism control	9.7’’ touch screen & remote controller

Workstation
Monitor	23’’ LCD Dell brand
CPU	≥ 2.8 GHz
Memory	≥ 4 GB
HDD	≥ 1 TB
DICOM3.0	Query for integration with any PACS

X-Ray Imaging

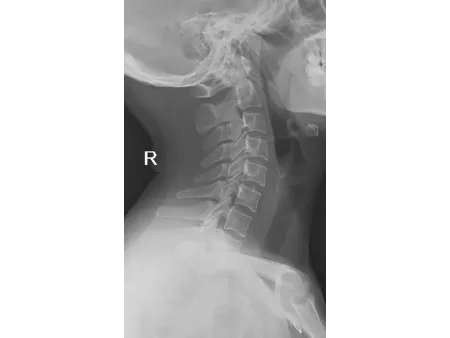

Head radiograph

Limb radiograph

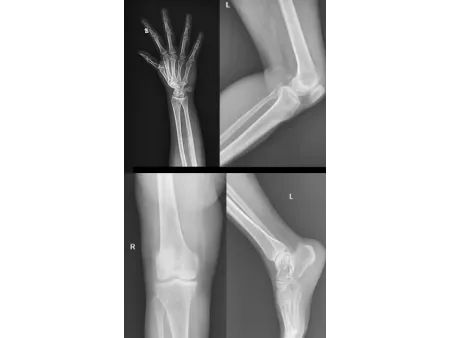

Abdominal radiograph

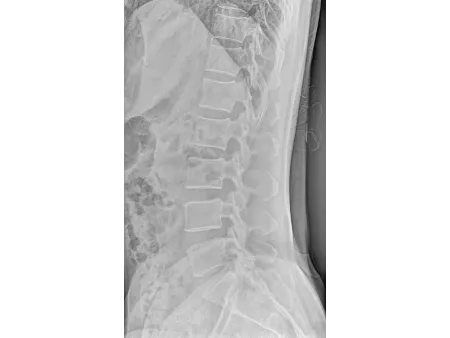

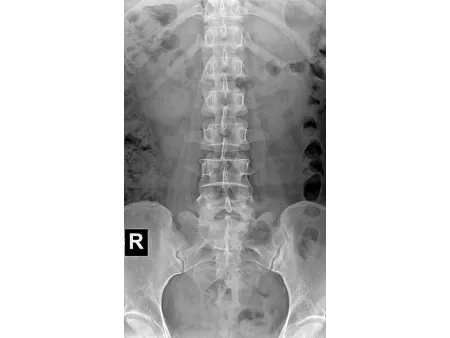

Lumbar radiograph

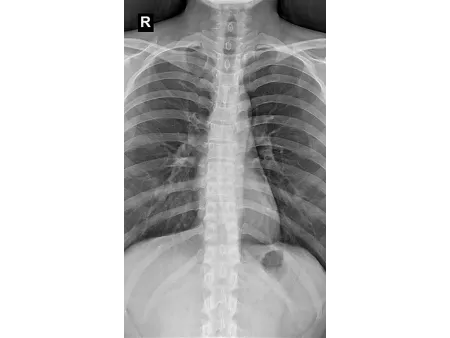

Chest radiograph

Main Parts

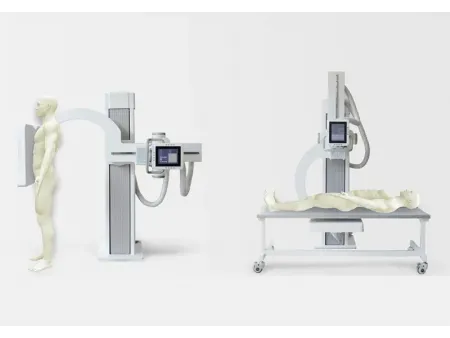

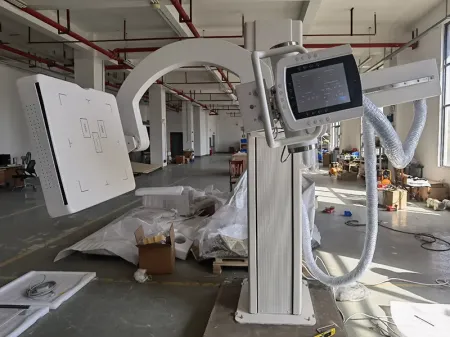

U-Arm

Supports a full range of diagnostic procedures, from supine examinations to standing chest X-rays.

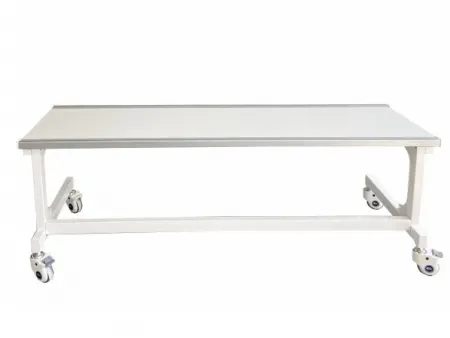

Movable Radiographic Table

Designed to accommodate patients weighing up to 150 kg.

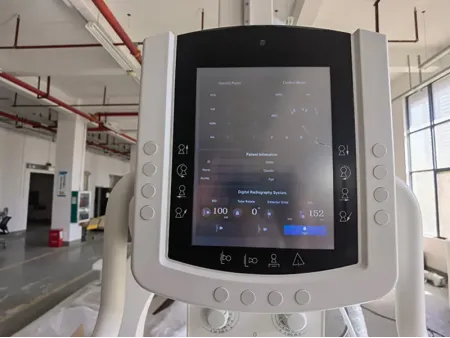

Operating Control Panel

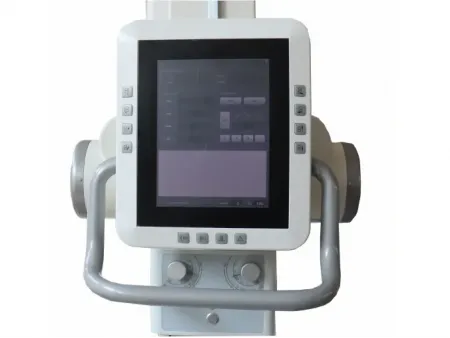

Features a 9.7-inch LCD color touchscreen for easy exposure parameter adjustments and body position selection

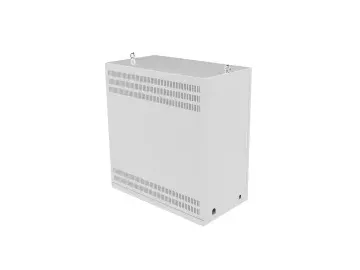

High-Voltage Generator

Ensures consistent and reliable power output for high-quality imaging.

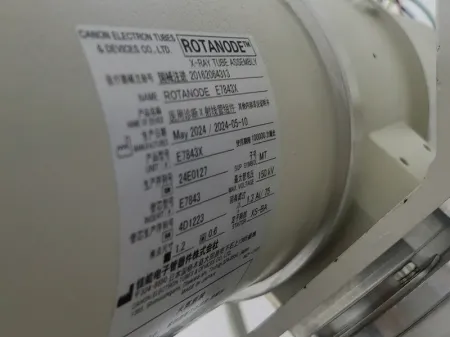

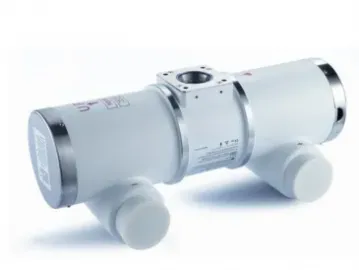

X-Ray Tube

Optional TOSHIBA tube available for enhanced imaging performance.

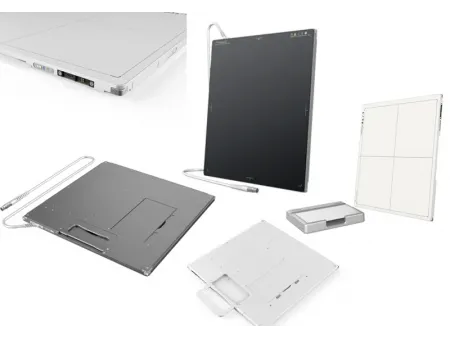

Flat Panel Detector (FPD)

Uses world-renowned Iray technology, available in both wired and wireless options. The wireless FPD includes a dedicated battery charger, and the image acquisition software is also supplied by Iray.

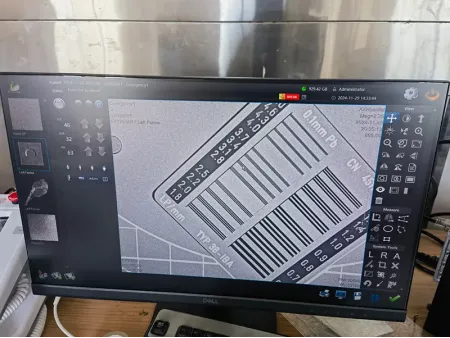

Iray Image Acquisition Software

User-friendly interface for seamless operation.

Dell 23-Inch Desktop Workstation

10.4-Inch Touchscreen Exposure Control Panel

Looking for a reliable and user-friendly U-arm X-ray machine? Contact us today to find the right solution for you!
