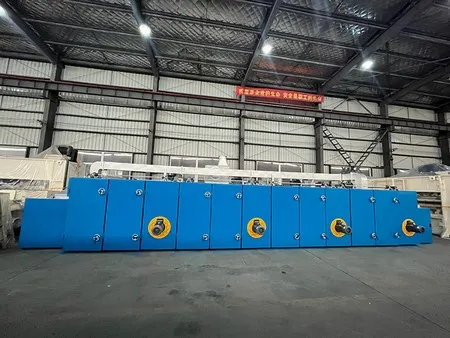

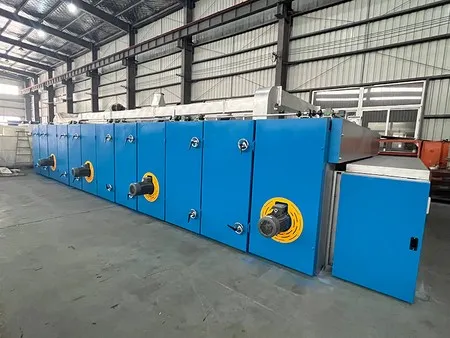

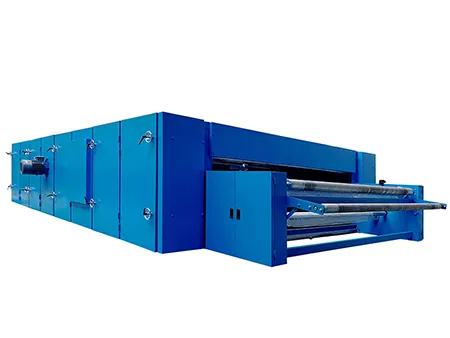

Thermobonding Oven with Single Conveyor
Request a Quote
Oven for making thermal bonded nonwovens
Thermalbonding oven, belong to the nonwoven equipment, utilizes the process of hot air penetration to heat the fiber web containing low-melting point fibers, thus achieving the bonding and reinforcement of the fiber web, resulting in the formation of bonded fiber web.
- Working width: 2300mm～4000mm
- Available products weight: 100～600 GSM
- Heating area: 6 – 10 meters (customization)
Application
Thermalbonding oven is used in nonwoven production lines and is suitable for producing various soft and low GSM products, such as thermal bonded wadding, fillers, insulation materials, etc.
Specifications
| Working width | 2300mm～4000mm |
| Available products weight | 100～600 GSM |
| Optional Heating method | Boiler with thermal oil |
| Burner (gas, diesel, LPG etc) | |
| Electrical radiator | |
| Structure features | Single floor ; Single conveyor |
| Heating area | 6 – 10 meters (customization) |
Features
- Thermobonding oven comes with a single-layer structure with two separate upper and lower hot air channels.
- Circular airflow allows for efficient and uniform heating, resulting in excellent product quality.
- Functions include automatic and precise temperature control, independently adjustable air volume and heating power.
- Multiple insulation design helps in energy saving.
- Optional heating methods are burner, boiler, electric heating.
