ZL-213

Electronic measuring system for single-plane and two-plane balancing

The electronic measuring system is a high-precision solution designed for both single-plane and dual-plane dynamic balancing machines. Capable of handling speeds up to 40,000 R/min, it delivers fast, accurate measurements and adapts easily to a wide range of balancing machines, including both soft- and hard-bearing types.

This system offers seamless compatibility with various sensors, such as vibration sensors and piezoelectric sensors, ensuring flexible integration into different testing setups. With its wide applicability, efficiency, and strong data versatility, the balancing measuring system is well-suited for demanding industrial balancing requirements. Standard interfaces also enable smooth data output and connectivity.

Specifications

Model	ZL-213
Duration of balancing	4-10s
Display range	1μg-999kg
Balancing method	Possible to select between single plane and two planes
Balancing speed	200-40000r/min
Unbalance resolution	0-3 decimal points
Min. achievable residual unbalance (eMar)	≤10g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Supports balancing tests at speeds up to 40,000 R/min
Precision measurement with accuracy down to 10 mg
Compatible with single-plane and dual-plane balancing machines
Unlimited storage for measurement records

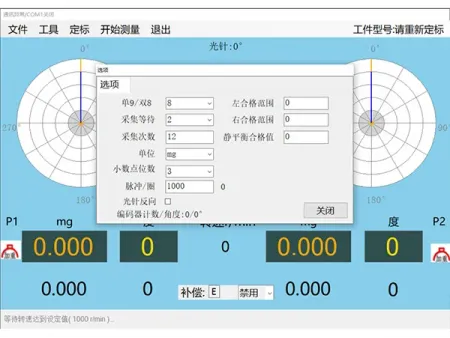

Real-time signal waveform display from vibration sensors
Indexing function for controlled balancing operations
Synchronous display for static balance measurements
