Dynamic Balancing Measuring System

Request a Quote

Website: http://balancingmachine-en.com/1-5-1-dynamic-balancing-measuring-system.html

ZL-211

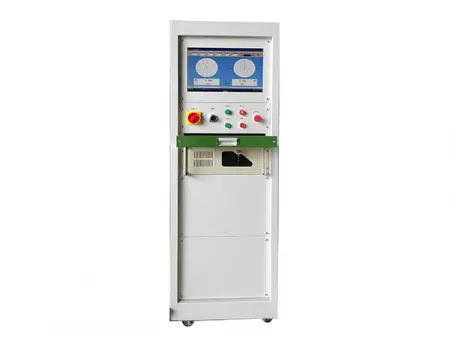

Industrial control cabinet for dynamic balancing

The measuring system is an advanced industrial control cabinet for dynamic balancing, equipped with a powerful industrial PC control platform. It delivers a high degree of automation, excellent balancing accuracy, broad applicability, and clear, reliable display performance. With intuitive operation and strong compatibility with external office equipment, it simplifies result printing, data storage, and balance grade reporting.

Specifications

Applications	Hard-bearing and soft-bearing balancing machines
Balancing speed	180-10000r/min
Min. achievable residual unbalance (eMar)	0.2gmm/kg
Unbalance reduction ratio (URR) per cycle	>95%
Ambient temperature	0-60°C
Ambient humidity	5%-95%
Power supply	220V ±10% 45-60HZ

Features

Independent control cabinet with a large display, operated via mouse and keyboard, and equipped with a printer
Supports customized report templates according to customer requirements, with instant result printing available
Integrated system diagnostics for balancing machine operating status, including serial port recognition
User-friendly operation with mouse and keyboard, designed for seamless integration with modern office equipment
