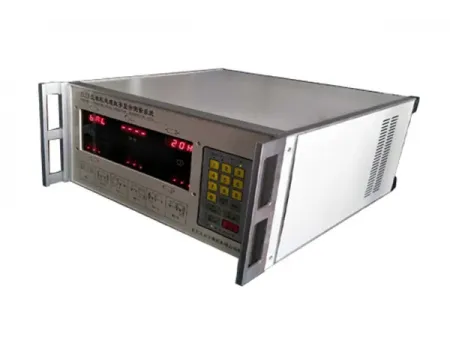

Dynamic Balancing Measuring System

Request a Quote

Website: http://balancingmachine-en.com/1-5-4-dynamic-balancing-measuring-system.html

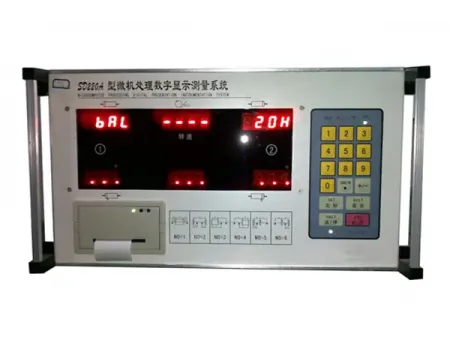

ZL-220

Digital measuring system for dynamic balancing

The digital measuring system is a high-performance dynamic balancing measuring solution developed with independent intellectual property rights. Designed for wide adaptability, it delivers high measurement accuracy, reliable operation, and low maintenance costs, making it a dependable choice for modern balancing machines.

With its broad compatibility and precision capabilities, the measuring system is suitable for diverse balancing applications across industries, ensuring efficiency and cost-effectiveness in both production and maintenance environments.

Specifications

Applications	Hard-bearing and soft-bearing balancing machines
Balancing speed	300-8000r/min
Min. achievable residual unbalance (eMar)	0.5gmm/kg
Unbalance reduction ratio (URR) per cycle	>90%
Ambient temperature	-5℃-35℃
Ambient humidity	≤85% (25℃)
Power supply	220V ±10% 45-60HZ

Features

LED digital display provides clear and better indication of unbalance values and angles
NTEL8051 chip delivers strong anti-interference performance with safe and reliable operation
Automatic speed lock ensures accurate measurement by automatically stabilizing speed readings
Offers six support configurations, including internal support, external support, left overhung, and right overhung, to accommodate different rotor types
Utilizes an automatic programmable amplifier and high-performance filters for precise signal processing
Can be equipped with a mini printer for immediate test result output
