Dynamic Balancing Measuring System
ZL-310
Electronic measuring system with touch screen for dynamic balancing
The electronic balancing measuring system is designed for both single-plane and dual-plane dynamic balancing and is compatible with a wide range of soft and hard-bearing balancing machines. Reliable and intuitive calibration instructions ensure that it always measures and displays data correctly. It supports easy integration with different sensors, including vibration sensors and piezoelectric sensors, making it versatile across various testing setups.

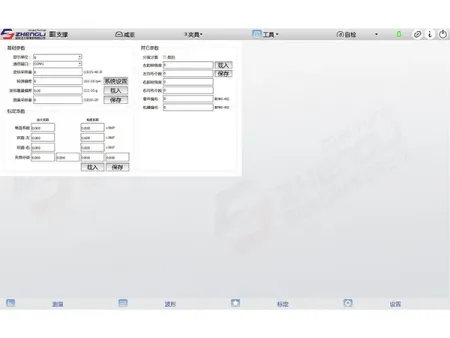

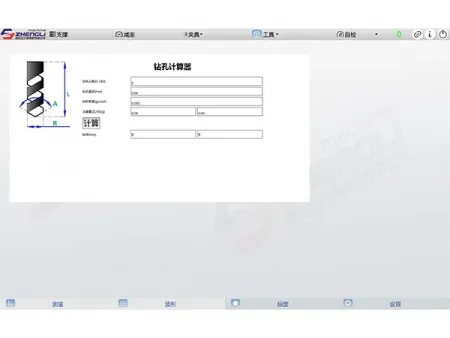

Equipped with a 14-inch LCD touch screen and running on a Linux operating system, the balancing measuring system provides fast performance, high reliability, and strong dust and vibration-resistant protection. Its rugged design makes it suitable for diverse industrial environments, while its broad data compatibility ensures convenient output through standard interfaces.
| Applications | Hard-bearing and soft-bearing balancing machines |
| Balancing speed | 100-20000r/min |
| Min. achievable residual unbalance (eMar) | 0.2gmm/kg |
| Unbalance reduction ratio (URR) per cycle | >95% |
| Ambient temperature | 0-60°C |
| Ambient humidity | 5%-95% |
| Power supply | 187-253V, 45-60Hz |
- Flexible measurement modes, including dynamic and static balancing, weight addition/removal, and forward/reverse rotation, customizable to user needs
- High measurement accuracy with multi-calibration coefficient combinations, automatic sensitivity adjustment, seamless range switching, dual hardware/software filtering, and data compression for stable results
- Customizable units for balance amount and angle, with real-time conversion to meet varied customer requirements
- Multiple display units available, including g, g.mm, g.cm, and oz.in, covering different testing standards and application needs
