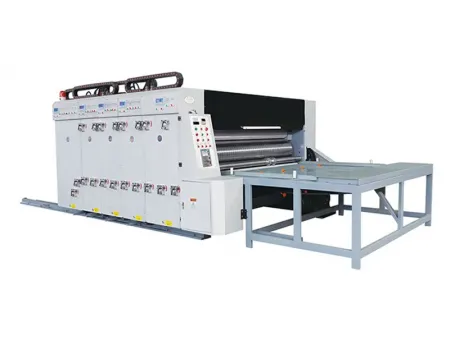

Semi-Automatic Flexo Printer Slotter Die Cutter with Chain Feeder

Semi-Automatic Flexo Printer Slotter Die Cutter with Chain Feeder
Semi-Automatic Flexo Printer Slotter Die Cutter with Chain Feeder
Semi-Automatic Flexo Printer Slotter Die Cutter with Chain Feeder
Semi-Automatic Flexo Printer Slotter Die Cutter with Chain Feeder
Semi-Automatic Flexo Printer Slotter Die Cutter with Chain Feeder
Request a Quote

Corrugated cardboard converting machine combining feeding, printing, slotting and die-cutting

Description

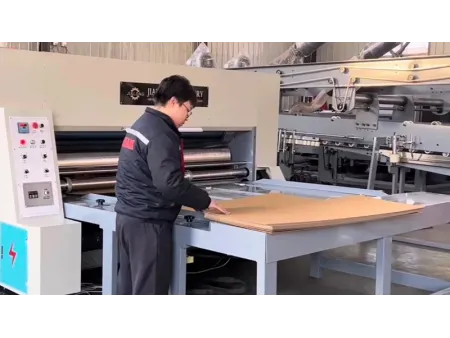

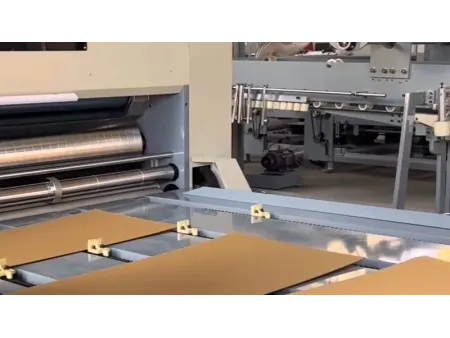

Combining advanced functionality with user-friendly operation, the semi-automatic flexo printer slotter die cutter is equipped with a chain feeder to efficiently process corrugated cardboard into high-quality carton products. It integrates feeding, printing, slotting, and die-cutting into one seamless operation. Utilizing a chain feeding method along with dual-side guides, it ensures precise and accurate feeding, which significantly reduces waste and enhances productivity.

Specifications
Model Machine speed (sheets/min) Effective printing size (mm) Sheet feeding
size (mm)
Printing plate thickness (mm) Width of slot (mm)
JLC4260-1800 0-60 1800×1270 2000×1270 6 7
JLC4260-2000 0-60 2000×1270 2200×1270 6 7
JLC4260-2200 0-60 2200×1270 2400×1270 6 7
JLC4260-2400 0-60 2400×1270 2600×1270 6 7
JLC4860-1800 0-60 1800×1450 2000×1450 6 7
JLC5260-2000 0-60 2000×1600 2200×1600 6 7
JLC6050-2200 0-60 2200×1800 2400×1800 6 7
JLC7150-2400 0-60 2400×2200 2600×2200 6 7
Main Configuration
  • Ink Circulating System
    The anilox roller is constructed from steel, providing excellent corrosion resistance and high-precision surface texture
    The rubber roller is made from natural rubber that is resistant to oil, acids, and alkalis
    A pneumatic diaphragm pump ensures automatic ink circulation

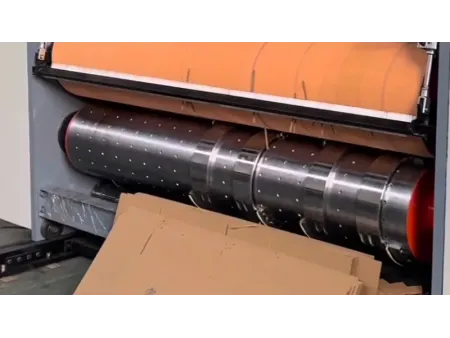

  • Slotting Unit
    The slotting section features 360° electric phase adjustment for precise control.
    Manual adjustment for the height of the cartons allows for flexibility and easy operation.
