Individual Machines for Corrugated Cardboard Production

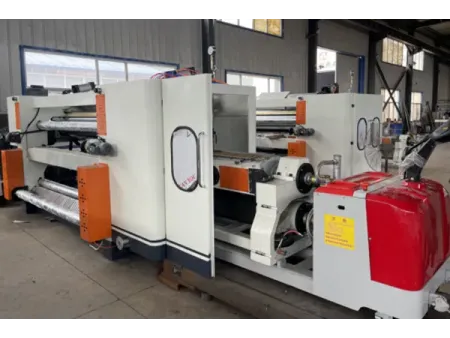

Single Facer Machine (for 2 Liners 2 Flutings), CZYL-DSF-405E

Working width: 1600mm, 1800mm, 2000mm, 2200mm, 2500mm
Design speed: 250m/min
Production speed: 180-230m/min
Operation direction: left-hand or right-hand (depending on user's plant layout)
Working temperature: 160℃ to 200℃
Air pressure: 0.4-0.9MPa
Steam pressure: 0.8-1.3MPa
Corrugated flute types: A, B, C, E, UV, UVV (optional)

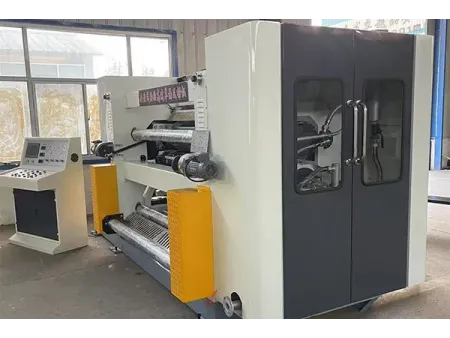

Vacuum Single Facer, CZYL-SFM-380S

The vacuum single facer is engineered to deliver high-speed, stable performance with efficient flute changeovers and compact design. Its robust build, advanced control system, and reliable gluing unit make it a versatile choice for corrugated board production.

Design speed: 200m/min
Effective width: 1400-2500mm
Corrugating roll diameter: Ø380mm (varies with flute type)
Pressure roll diameter: Ø385mm
Pre-heating roll diameter Ø400mm

Features

Dual Corrugating Rolls
Two sets of corrugating rolls made of high-quality alloy steel. One set operates while the other remains preheated and on standby for quick flute changes.
Space-Saving Design
Offers the functionality of two machines within one, significantly reducing floor space requirements.
High-Strength Rolls
Upper and lower corrugating rolls are heat-treated to HRC58°–60°, precision ground, and chrome plated. Optional tungsten carbide rolls are available for extended durability.
Smart Control System
PLC-controlled with a touchscreen interface, enabling easy operation and real-time monitoring of running parameters.
Reliable Transmission
Independent drive box with five-shaft transmission, hardened gears, and oil-pump spray lubrication ensures smoother running, lower noise, and extended gear life.
Efficient Gluing System
Glue thickness adjusted by electric push rod with an electric glue-separating device. The gluing unit runs independently when the main machine stops, preventing starch from drying out.

Vacuum Single Facer, CZYL-SFM-360S

Built for medium-speed corrugated board production, the vacuum single facer combines reliable operation with reduced noise and stable flute formation. Its pneumatic control system, durable corrugating rolls, and advanced gluing unit deliver consistent performance and cost-effective production.

Design speed: 150m/min
Effective width: 1400-2500mm
Corrugating roll diameter: Ø320mm, Ø360mm

Features

Low-Noise Drive System
Gearbox uses oil-immersed lubrication to minimize noise, with universal joint transmission and optional power source isolation.
Pneumatic Control
Lifting operations for the corrugating roll, pressure roll, and gluing roll are all pneumatically managed.
Vacuum Paper Guiding
Vacuum suction with adjustable airflow ensures stable flute formation even at high operating speeds.
High-Temperature Bearings
Bearings of corrugating and pressure rolls are lubricated with heat-resistant grease to enhance durability.
Automatic Glue Circulation
Continuous glue circulation system prevents sedimentation and ensures consistent glue supply.
Durable Corrugating Rolls
Upper and lower rolls made of 52CrMo alloy steel, heat-treated to HRC58–60° and precision ground for long-lasting performance.
Flexible Glue Separation
Choice of manual or electric glue-separating device to suit production needs.
Independent Operation
Gluing unit can run independently or stop with the main machine, preventing glue from drying during downtime.

Vacuum Single Facer, CZYL-SFM-280S

As a compact solution for single facer production, this vacuum single facer combines low-noise operation with stable flute formation and reliable gluing performance. Its pneumatic control, durable corrugating rolls, and advanced glue application system make it ideal for consistent and efficient corrugated board processing.

Design speed: 80m/min
Effective width: 1400-2200mm
Corrugating roll diameter: Ø280mm

Features

Low-Noise Drive
Gearbox uses oil-immersed lubrication to reduce noise, with universal joint transmission and isolated power source.
Pneumatic Control
Corrugating roll, pressure roll, and glue roll lifting are all pneumatically operated.
Vacuum Paper Guiding
Equipped with vacuum suction and adjustable airflow to ensure stable flute formation at high speeds.
High-Temperature Bearings
Corrugating and pressure roll bearings use heat-resistant grease for long-lasting performance.
Automatic Glue Circulation
Continuous glue supply system prevents drying and maintains stable adhesive application.
Durable Corrugating Rolls
Upper and lower corrugating rolls made of 52CrMo high-quality alloy steel, heat-treated to HRC58°–60° and precision ground for accuracy.
Advanced Glue Roll
Glue roll surface is engraved with a reticulated pattern and chrome plated for precise, even coating.
Flexible Glue Separation
Available with manual or electric glue-separating device.
Independent Glue Unit
Gluing section can run independently or stop with the main machine; optional main motor frequency control available.
