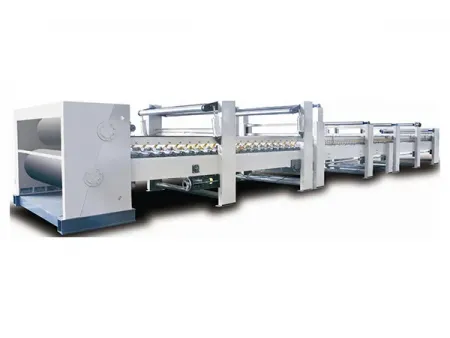

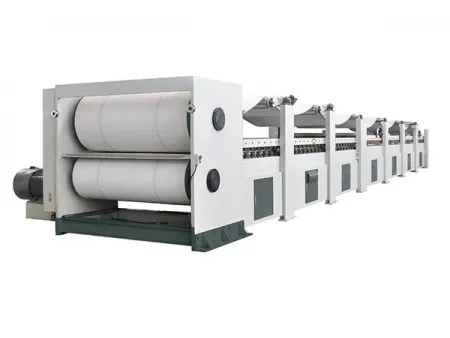

Double Facer Machine

Request a Quote

Website: http://corrugatedline-en.com/1-8-double-facer-machine.html

Individual Machines for Corrugated Cardboard Production

The double facer machine DFM is engineered to provide stable bonding and smooth output for corrugated cardboard production. With precision-designed heating plates, advanced steam utilization, and reliable belt alignment systems, it ensures consistent quality and long-term durability in high-speed operations.

Features

Durable Heating Plates
Equipped with 18 plates, each 600 mm wide, precision ground and hard chrome plated; includes a 4 m cooling section for reliable board forming.
Full Contact Structure
Heating plates adopt a pneumatic full-contact pressing design, ensuring uniform bonding across the board.
Temperature Control
Multi-section thermal piping with clear temperature display allows accurate regulation of heating conditions.
Efficient Steam Utilization
Partitioned internal design forces steam into an S-shaped path, ensuring effective steam-water separation and improved energy efficiency.
Automatic Belt Alignment
Upper conveyor belt features dual-side automatic correction, while the lower belt uses a manual S-type correction and tensioning mechanism.
Reliable Belt Tensioning
Upper cotton belt employs dual-cylinder S-type tensioning; lower conveyor belt tensioning is manual with micro-adjustment for flexibility.
Stable Output
Drive roller surface is coated with wear-resistant rubber and crowned (slightly higher at the center), ensuring smooth, flat cardboard output.
