Variable Speed Refrigerated Air Dryer - TRV Series (TRV01-TRV12)
Variable Speed Drive (VSD) equipped refrigeration dryer is designed to deliver superior energy efficiency, precise dew point control, and stable performance under fluctuating operating conditions. It integrates advanced DC inverter technology with high-efficiency heat exchange, making it ideal for industries seeking to reduce energy consumption and improve system responsiveness.
- Ambient temperature: -10~45℃
- Compressed air inlet temperature: 15~65℃
- Compressed air pressure: 0.7MPa, Max.1.6MPa (or customizable)
- Pressure drop: ≤0.02MPa (at 0.7MPa inlet pressure)
- Pressure dew point: 3℃ (35℃ inlet temperature, 25℃ ambient temperature)
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Evaporator type | Cooling method | Refrigerant | Total weight (kg) | Dimensions (L×W×H) |
| | 1.2 | 220V/50Hz | 0.28 | RC3/4' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 33 | 510×380×665 |
| | 2.4 | 220V/50Hz | 0.34 | RC3/4' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 40 | 550×410×725 |
| | 3.6 | 220V/50Hz | 0.37 | RC1' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R134a | 53 | 630×490×850 |
| | 6.5 | 220V/50Hz | 0.99 | RC1-1/2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 69 | 730×540×950 |
| | 8.5 | 220V/50Hz | 1.5 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 86 | 800×590×990 |
| | 10.5 | 220V/50Hz | 1.6 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 91 | 800×590×990 |
| | 13 | 220V/50Hz | 1.97 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R410A | 103 | 830×610×1030 |

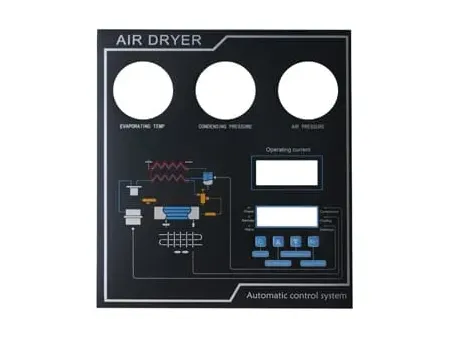

- Display Interface: LED running status display, dew point temperature display
- Anti-Freezing Protection: Constant pressure expansion valve

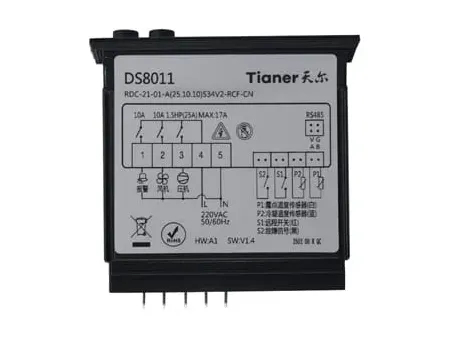

- Temperature Control: Automatic control of condensing temperature and dew point temperature
- High Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Low Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Remote Control: Optional configuration of remote connection dry contact, RS485 expansion interface (please let us know in advance if you need)
- Energy efficiency
Incorporates DC inverter technology that enables true automatic capacity adjustment based on system demand.
At minimum load, it consumes only about 20% of the power compared to conventional fixed-speed dryers, allowing operators to significantly reduce electricity costs—often enough to recoup the equipment investment within a year. - High performance
Enhanced by an aluminum alloy three-in-one plate heat exchanger working in concert with variable speed technology.
Provides precise and responsive dew point control, maintaining optimal air quality even under dynamic load conditions. - Intelligent operation
Automatically adjusts compressor frequency in response to changing operating conditions.
Features a comprehensive self-diagnostic system with a user-friendly interface that clearly displays operational status and alerts for optimal maintenance and reliability. - Environmentally friendly
Uses R134a and R410A refrigerants compliant with the Montreal Protocol, ensuring zero ozone depletion potential and full alignment with international environmental standards.
- Stable performance
The variable speed system extends the dryer’s operating temperature range, maintaining full-capacity output under high-temperature conditions to ensure rapid dew point stabilization.
Under extremely low ambient temperatures, it reduces output frequency to prevent freeze-ups, while continuing to maintain consistent dew point control.
