Variable Speed Refrigerated Air Dryer - TRV Series (TRV15-TRV200)
Engineered for large-scale industrial operations, these VSD-equipped refrigerated dryers integrate flexible variable frequency technology with high-efficiency heat exchange, providing maximum energy savings, precise dew point control, and reliable performance under varying load conditions.
- Ambient temperature: -10~45℃
- Compressed air inlet temperature: 38℃, Max.65℃
- Compressed air pressure: 0.7MPa, Max.1.6MPa (or customizable)
- Pressure drop: ≤0.025MPa (at 0.7MPa inlet pressure)
- Pressure dew point: 3℃ (35℃ inlet temperature, 25℃ ambient temperature)
| Model | Max. air flow rate (m³/min) | Power supply | Input power (kW) | Air pipe connection | Evaporator type | Cooling method | Refrigerant | Total weight (kg) | Dimensions (L×W×H) |
| | 17 | 380V/50Hz | 3.8 | RC2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 217 | 1250×850×1100 |
| | 23 | 380V/50Hz | 4 | RC2-1/2' | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 242 | 1350×900×1160 |
| | 27 | 380V/50Hz | 4.9 | DN80 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 275 | 1400×950×1230 |
| | 33 | 380V/50Hz | 5.8 | DN80 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 340 | 1625×1000×1480 |
| | 42 | 380V/50Hz | 6.3 | DN100 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 442 | 1450×1100×1640 |
| | 55 | 380V/50Hz | 9.7 | DN100 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 582 | 1630×1150×1760 |
| | 65 | 380V/50Hz | 11.3 | DN125 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 768 | 1980×1650×1743 |
| | 85 | 380V/50Hz | 13.6 | DN125 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 915 | 2280×1800×1743 |
| | 110 | 380V/50Hz | 18.6 | DN150 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 1120 | 2460×1800×1960 |
| | 130 | 380V/50Hz | 22.7 | DN150 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 1350 | 2100×2420×2110 |
| | 165 | 380V/50Hz | 27.6 | DN150 | Aluminum plate heat exchanger | Air-cooled finned-tube condenser | R407C | 1680 | 2300×2420×2110 |
| | Technical data available on request | ||||||||

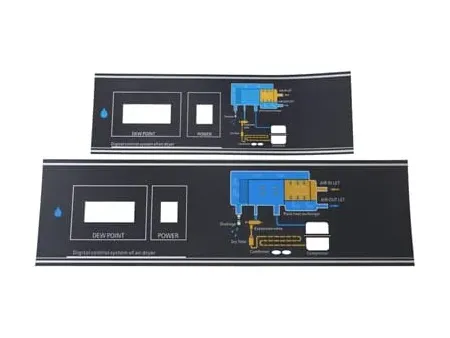

- Display Interface: True color touch screen, running status and dew point temperature display
- Anti-Freezing Protection: Automatic temperature control/antifreeze solenoid valve

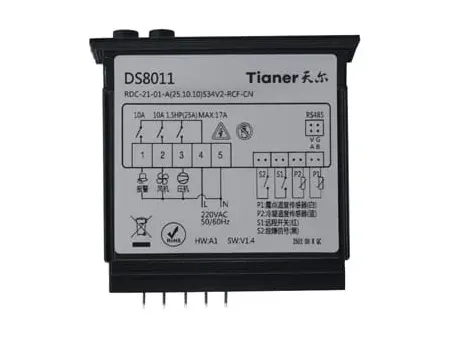

- Temperature Control: Automatic control of condensing temperature and dew point temperature
- High Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Low Voltage Protection: Temperature sensor & pressure sensitive intelligent protection
- Remote Control: Standard configuration of remote connection dry contact, RS485 expansion interface
- Energy efficiency
Utilizes flexible variable frequency technology, enabling precise adjustment of compressor speed according to system demand.
At minimum load, power consumption is reduced to about 30% compared to conventional fixed-speed dryers, allowing substantial electricity savings, often enough to offset the equipment cost within one year. - High performance
Enhanced by an aluminum alloy three-in-one plate heat exchanger working in concert with variable speed technology.
Provides precise and responsive dew point control, maintaining optimal air quality even under dynamic load conditions.
- Intelligent operation
Automatically adjusts compressor frequency in response to changing operating conditions.
Features a comprehensive self-diagnostic system with a user-friendly interface that clearly displays operational status and alerts for optimal maintenance and reliability.
- Environmentally friendly
Uses R407C refrigerant compliant with the Montreal Protocol, with zero ozone depletion potential, fully meeting global environmental requirements.
- Stable performance
The variable speed system extends the dryer’s operating temperature range, maintaining full-capacity output under high-temperature conditions to ensure rapid dew point stabilization.
Under extremely low ambient temperatures, it reduces output frequency to prevent freeze-ups, while continuing to maintain consistent dew point control.
