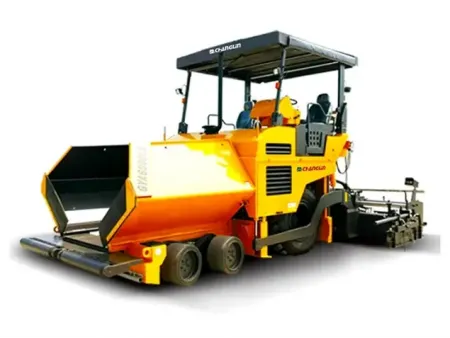

Asphalt Paver GYA6000L(B)
Request a Quote
- Hopper Capacity 12t
- Rated Power 93kW
- Max. paving width 6000mm
Video
- Wheel type pavers are widely used, convenient for quick transition, strong maneuverability and high work efficiency.
- Dongfeng Cummins EFI engine, strong power, high reliability; good low temperature start-up performance.
- Equipped with full hydraulic automatic telescopic screed, paving width 1.8-4.5m stepless adjustable.
- Optional all-wheel drive model provides greater traction for heavy duty and softer roadbed conditions.
- Driving tire drive, the paving speed adopts constant speed automatic control technology.
- The key hydraulic components such as pumps, motors, joints, etc. are properly matched and can be adapted to the transportation and paving of any stable soil and asphalt mixture.
| Model | GYA6000L | GYA6000LB |
| Length×Width×Height (mm): | 6290×2690×3650 | 6290×2690×3650 |
| Total weight (kg): | 16000 | 16000 |
| Engine | Cummins QSB 3.9-C125 | Cummins QSB 3.9-C125 |
| Rated output (kw) | 93 | 93 |
| Basic paving width (mm) | 2500 | 2500 |
| Max. paving width (mm) | 6000 | 6000 |
| Max. paving thickness (mm) | 150 | 150 |
| Travelling type | Rear wheel drive | All wheel drive |
| Travelling speed (km/h) | 0-11 | 0-11 |
| Paving speed (m/min) | 0-11 | 0-11 |
| Hoper capacity (t) | 12 | 12 |
