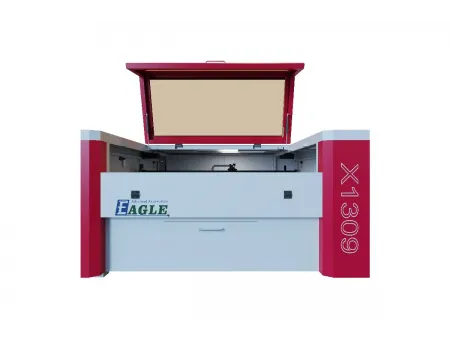

CO 2 Laser Cutting Machine

CO 2  Laser Cutting Machine
Request a Quote

Our CO2 laser cutting machine is a gas laser device that is CNC controlled to perform high precision, high speed cutting and engraving. CO2 lasers are commonly used laser cutting systems because they have flexible application options that allow for consistent laser engraving, cutting, and marking on different metals and wooden work pieces. To illustrate, the laser cutting machine supports cutting mild steel, stainless steel, galvanized steel, plastic, plexiglass, timber, and more.

This type of cutting equipment is commonly used due to the ratio of power output to cost of operation.

Specifications
Model
ML3015
ML4020
Gantry Flying Optical Path
Machining Area X 3000mm X 4000mm
Y 1500mm Y 2000mm
Z 100mm Z 100mm
Max. Machining Weight 850kg 1300kg
Max. Positioning Speed 106m /min
Positioning Accuracy 0.06mm
Repositioning Accuracy 0.015mm
Max. Cutting Speed 20m /min
Laser Cooling Closed Inner Circulation, Temperature Control
Laser 2000W 2500W 3000W 3300W 4000W
Laser PANASONIC High Flow DC Excited CO2 Laser
Structure Standard
Rated Power 2000W 2500W 3300W 4000W
Output ±2%
Wave 10.6μm
Laser Modal TEMoo (Main)
Laser Gas CO2:N2:He=1.7%:23.4%:74.9%(Balanced)
Input Power 23KVA 34KVA 40KVA 50KVA
Laser Gas Consumption 30L /h 40L /h
Max. Cutting Capacity Carbon Steel 12mm 16mm 18mm 22mm
Stainless Steel 6mm 8mm 10mm 12mm
Laser PANASONIC , JAPAN EASTERN LASER, NANJING
Rated Power 2000W 2500W 3300W 4000W 2000W 3000W
Max. Cutting Capacity Carbon Steel 8mm 10mm 16mm 20mm 10mm 16mm
Stainless Steel 4mm 6mm 8mm 10mm 5mm 6mm
Outline Size 8.2m 11.2m
4.5m 4.8m
1.9m 2.0m
Guards & Operation Panel Included
Weight 10000kg 12000kg
