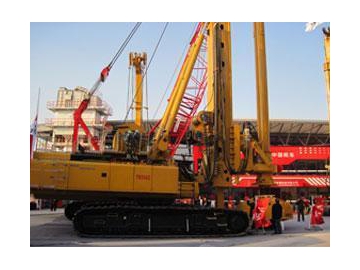

TR500 Rotary Drilling Rigs
| Technical Parameters | ||
| Euro Standards | U.S Standards | |
| Max drilling depth | 130m | 426 ft |
| Max hole diameter | 4000mm | 157in |
| Engine model | CAT C-18 | CAT C-18 |
| Rated power | 420KW | 563HP |
| Max torque | 475kN.m | 350217lb-ft |
| Rotating speed | 6~20rpm | 6~20rpm |
| Max crowd force of cylinder | 300kN | 67440lbf |
| Max extraction force of cylinder | 440kN | 98912lbf |
| Max stroke of crowd cylinder | 13000mm | 512in |
| Max pulling force of main winch | 547kN | 122965lbf |
| Max pulling speed of main winch | 30-51m/min | 98-167ft/min |
| Wire line of main winch | Φ42mm | Φ1.7in |
| Max pulling force of auxiliary winch | 130kN | 29224lbf |
| Undercarriage | CAT 385C | CAT 385C |
| Track shoe width | 1000mm | 39in |
| Width of crawler | 4000-6300mm | 157-248in |
| Whole machine weight | 168T | 168T |
