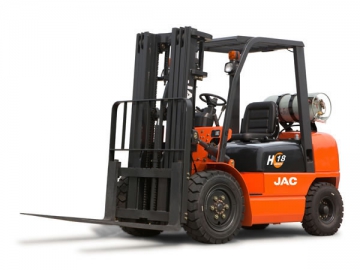

Gasoline LPG Forklift (1-1.8T Forklift Truck, H Series)
| Model | CPQD10H, CPQD15H, CPQD18H, CPQYD10H, CPQYD15H, CPQYD18H |
| Rated Load Capacity | 1000kg, 1500kg, 1800kg |
| Engine | Engine from Nissan, and other Chinese supplier |
| Gearbox | Hydraulic/automatic (TCM technology) |

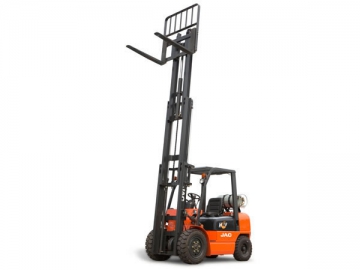

| Standard Mast | 2-stage mast (3m) |
| Container Mast (Optional) | 2-stage or 3-stage full free mast (3m-6m) |
| Tyre | Pneumatic tyre (Standard), solid tyre (Optional) |
| Side Shifter (Optional) | Integrated type side shifter, CASCADE side shifter |
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
Features

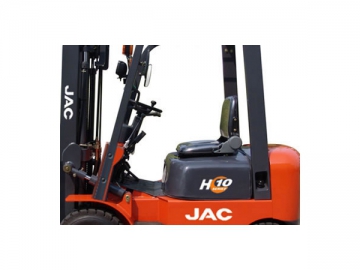

1. The Gasoline LPG Forklift of 1-1.8 ton H series is constructed based on ergonomics. The seat location and the steering wheel angle can be adjusted freely to obtain large working space. The special design creates comfortable working environment and minimizes the fatigue of the operator.

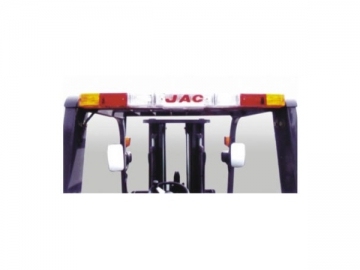

2. The combined type taillight for the warehouse equipment is installed at the top of the overhead guard. Apart from the nice appearance, the eye-catching design makes the forklift truck quite safe for use at night. The appearance design of the Gasoline LPG Forklift is granted national patent.

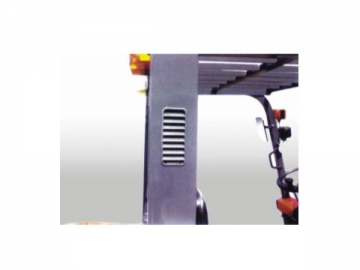

3. The cyclone filter, as well as the air inlet system installed at high level, effectively extends the lifespan of the engine.

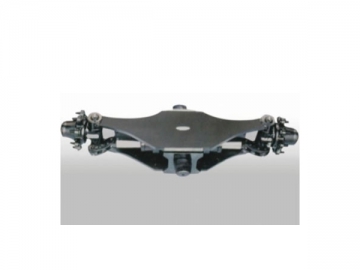

4. Hydraulic load-free induction steering gear and transverse oil cylinder steering system enable labour-saving operation. The steering axle is capable of affording 300,000 times fatigue test.
5. The eco-friendly design of the Gasoline LPG Forklift offers full protection to both the user and the environment.
6. Small overall dimension, low centre of gravity, small turning radius, and excellent manoeuvrability.
7. The frame and the steering axle of the material handling equipment are engineered with shock absorber to reduce the impact and maximize the comfort during operation.
8. Multiple engines for selection.
| Model | Unit | CPQD10H | CPQD15H | CPQD18H | |
| Load Capacity | Kg | 1000 | 1500 | 1800 | |
| Load Center | mm | 500 | 500 | 500 | |
| Mast Lifting height | mm | 3000 | 3000 | 3000 | |
| Mast Free Lift | mm | 155 | 155 | 155 | |
| Mast Lifting Speed (With Load) | mm/s | 550 | 550 | 550 | |
| Mast Tilting Angle (Front/Rear ) | 6°/ 12° | 6°/ 12° | 6°/ 12° | ||
| Driving Speed | km/h | 14 | 14 | 14 | |
| Turning Radius | mm | 1880 | 1955 | 1985 | |
| Ground Clearance | mm | 115 | 115 | 115 | |
| External Dimension | Length to face of forks | mm | 2171 | 2231 | 2274 |
| Overall width | mm | 1080 | 1080 | 1080 | |
| Height of overhead guard (cabin) | mm | 2060 | 2060 | 2060 | |
| Height of mast, extended | mm | 3930 | 3930 | 3930 | |
| Wheelbase | mm | 1400 | 1400 | 1400 | |
| Tread | Front | mm | 891 | 891 | 891 |
| Rear | mm | 920 | 920 | 920 | |
| Overhang (front) | mm | 407 | 407 | 407 | |
| Fork | mm | 1070 | 1070 | 1070 | |
| Service Weight | kg | 2430 | 2790 | 2890 | |
| Engine | Model | Chinese engine | NISSAN K21 | |
| Rated Output | KW | 36.5 | 31.2 | |
| Rated power speed | rpm | 2500 | 2250 |
