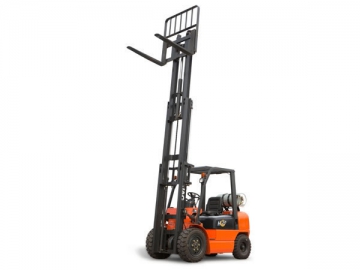

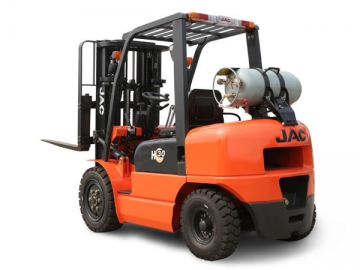

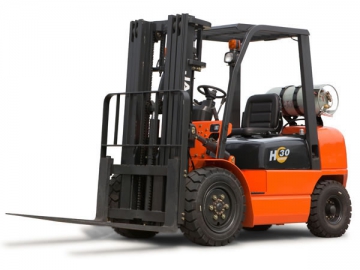

Gasoline LPG Forklift (2-2.5T Forklift Truck, H Series)
| Model | CPQD20H, CPQD25H, CPQYD20H, CPQYD25H |
| Rated Load Capacity | 2000kg, 2500kg |
| Engine | Engine from Nissan, and other Chinese supplier |

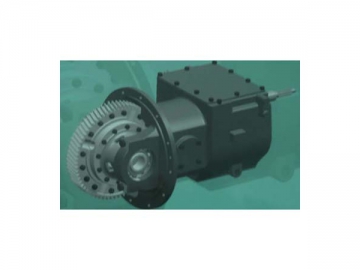

| Gearbox | Hydraulic/automatic (TCM technology) |
| Standard Mast | 2-stage mast (3m) |
| Container Mast (Optional) | 2-stage or 3-stage full free mast (3m-6m) |
| Tyre | Pneumatic tyre (Standard), solid tyre (Optional) |
| Side Shifter (Optional) | Integrated type side shifter, CASCADE side shifter |
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
Selling Point
1. The H series Gasoline LPG Forklift comes with the load capacity from 2 tons to 2.5 tons. It is equipped with first class drive system and high quality gearbox.

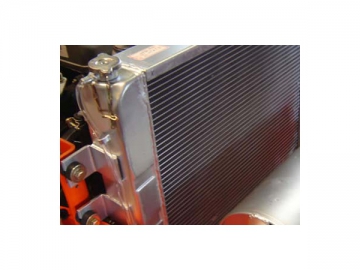

2. For optimal heat dissipation effect, we particularly manufacture the heavy-duty lift truck with aluminium radiator.

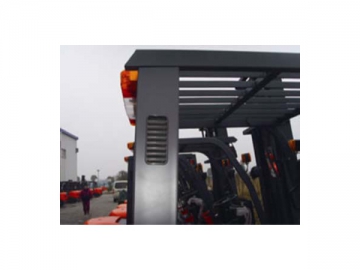

3. The air intake system of the Gasoline LPG Forklift is installed at high level to prevent the dust from entering the engine, so the lifespan of the engine is extended, accordingly.

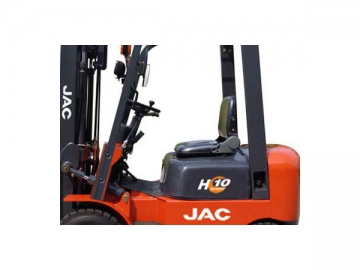

4. Thanks to the adjustable seat and steering wheel, the working space can be enlarged. The comfortable environment brings worker a good mood.
5. Wide field of view
6. Streamlined design for the balance weight of the industrial forklift truck makes for attractive and unique appearance of our product.

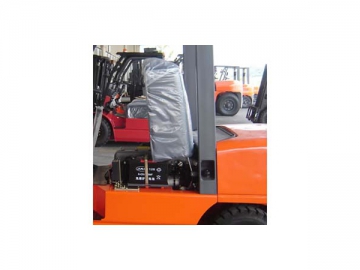

7. Big opening angle of the hood makes the maintenance of the fork truck easier.
| Model | Unit | CPQD20H | CPQD25H | |
| Load Capacity | Kg | 2000 | 2500 | |
| Load Center | mm | 500 | 500 | |
| Mast Lifting height | mm | 3000 | 3000 | |
| Mast Free Lift | mm | 160 | 160 | |
| Mast Lifting Speed (With Load) | mm/s | 550 | 550 | |
| Mast Tilting Angle (Front/Rear ) | 6°/ 12° | 6°/ 12° | ||
| Driving Speed | km/h | 19.5 | 19.5 | |
| Turning Radius | mm | 2170 | 2245 | |
| Ground Clearance | mm | 115 | 115 | |
| External Dimension | Length to face of forks | mm | 2845 | 2560 |
| Overall width | mm | 1160 | 1160 | |
| Height of overhead guard (cabin) | mm | 2070 | 2070 | |
| Height of mast, extended | mm | 4030 | 4030 | |
| Wheelbase | mm | 1600 | 1600 | |
| Tread | Front | mm | 970 | 970 |
| Rear | mm | 970 | 970 | |
| Overhang (front) | mm | 465 | 465 | |
| Fork | mm | 1070 | 1070 | |
| Service Weight | kg | 3520 | 3740 | |
| Engine | Model | Chinese engine | NISSAN K21 | NISSAN K25 | |
| Rated Output | KW | 41 | 31.2 | 37.4 | |
| Rated power speed | rpm | 2800 | 2250 | 2300 |
