Gasoline/LPG Forklift 2-4 Tonne
- The wide-view reinforced mast design enhances the operator's field of vision, providing better visibility, durability, and high reliability.
- Drivers can have better control over the forklift thanks to the LCD panel and user-friendly interface.
- The new steering wheel structure greatly improves comfort and adjustment reliability.
Material handling in factories and workshops.

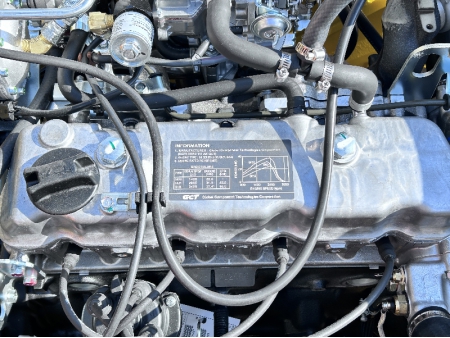

LPG & Gasoline Dual-Fuel Engine (Optional)
The advanced dual-fuel system offers flexible, safe, and efficient switching between fuel types. LPG fuel is clean, environmentally friendly, and cost-effective, adapting seamlessly to various environments and budget needs.
Seat (Optional)
Features an ergonomically designed OPS system with multiple adjustment options to minimize operator fatigue and ensure comfort during long shifts.
Mast (Optional)
Offers both 2-3 stage standard masts and multi-stage full free lift masts, allowing for high customization to meet diverse operational requirements.
Load-Backrest
Equipped with a load-backrest to prevent cargo slippage, this feature enhances safety throughout the operation process.
Control System (Optional)
The integrated dashboard, combined with ergonomically designed steering, throttle, and brake controls, provides safe, convenient, and comfortable handling for the operator.
Overhead Guard
Designed to enhance the safety of the driver, it also supports custom width and height options to meet specific operational needs.
Control Valve
With a thoughtfully designed layout, it ensures simple, user-friendly operation and offers customization options to suit various requirements.
Air Filter & Air Tank
The air filter effectively removes impurities, enhancing engine efficiency and extending its lifespan. The air tank, crafted from high-strength, corrosion-resistant steel, offers excellent sealing for enhanced safety and durability.
| Model | | | | | | | |||
| Characteristics | Power | Gasoline/LPG | |||||||
| Capacity | kg | 2000 | 2500 | 3000 | 3300 | 3500 | 4000 | ||
| Load Centre | mm | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Min. Turning Radius | mm | 2190 | 2240 | 2400 | 2470 | 2470 | 2470 | ||
| Performance | Travel Speed | Load | km/h | 19 | 19 | 20 | 20 | 20 | 22 |
| Lift Speed | Load | mm/s | 500 | 500 | 480 | 480 | 480 | 480 | |
| Max. Traction Power | Load | KW | 17 | 18 | 20 | 22 | 22 | 22 | |
| Dimensions | Total Length | With fork | mm | 3600 | 3650 | 3770 | 3870 | 3870 | 3970 |
| Without fork | mm | 2530 | 2580 | 2700 | 2800 | 2800 | 2900 | ||
| Total Width | mm | 1160 | 1160 | 1225 | 1225 | 1225 | 1225 | ||
| Max. Height | mm | 4220 | 4220 | 4265 | 4265 | 4265 | 4265 | ||
| Mast Height | mm | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | ||
| Chassis | Tyre | Front | 7.00-12 | 7.00-12 | 28x9-15 | 28x9-15 | 28x9-15 | 250-15 | |
| Rear | 6.00-9 | 6.00-9 | 6.50-10 | 6.50-10 | 6.50-10 | 6.50-10 | |||
| Wheelbase | mm | 1600 | 1600 | 1700 | 1800 | 1800 | 1900 | ||
| Service Weight | No load | kg | 3530 | 3880 | 4350 | 4300 | 4605 | 5020 | |
| Power | Engine | Model | Xinchai | ||||||
| Rated power | kW/r.p.m | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 | ||
| Rated torque | Nm/r.p.m | 156/1700-1900 | 156/1700-1900 | 156/1700-1900 | 156/1700-1900 | 180-190/1800-2000 | 180-190/1800-2000 | ||
| Cylinders | 4 | 4 | 4 | 4 | 4 | 4 | |||
-
