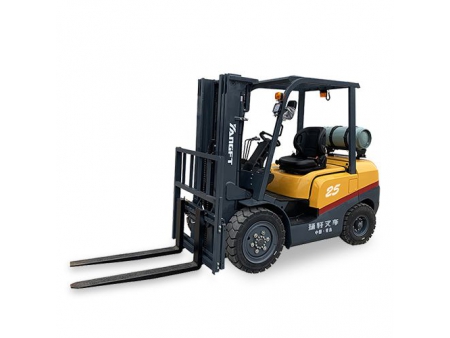

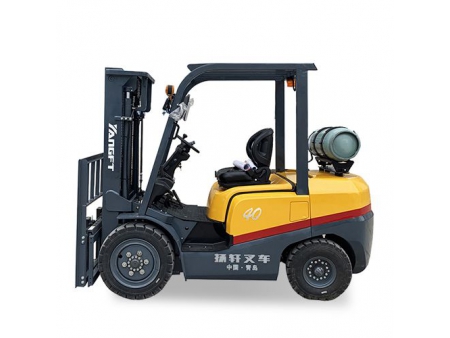

Gasoline/LPG Forklift 2-4 Tonne
T Series
The 4-cylinder LPG forklift is suitable for material handling jobs in limited space since it boasts a small turning radius. Its load capacity is 2 to 4 tons, with the standard lifting height of 3 meters and the maximum customized lifting height of 8 meters.
The truck's interior is specially designed with plastic storage compartments for convenient storage of items such as water bottles, notebooks, etc. In addition, the electrical and other systems are integrated into an enclosure with a removable side panel, eliminating the need for lifting equipment during maintenance and inspection. This significantly reduces service costs and simplifies maintenance.
- 2000-4000 kg
- 3000 mm
- 17-18 km/h
- 2240-2530 mm
- The engine is clean and efficient, meeting the requirements of Tier 3 Emission Standards.
- The electrical system is integrated with other systems.
- The detachable side cover design makes it more convenient to inspect and maintain the forklift.
- Wide steps secure drivers’ safety and convenience to get on and off the truck.
- Being flexible, reliable and energy-saving, the forklifts provide safe, smart and efficient driving experience.
Material handling in factories and workshops.

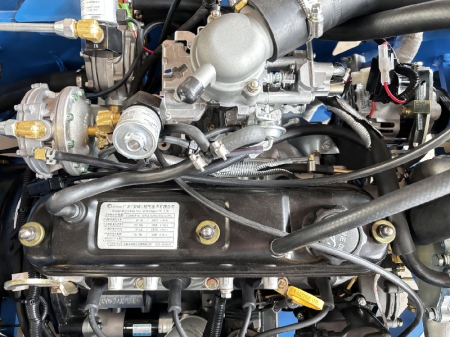

LPG & Gasoline Dual-Fuel Engine (Optional)
The advanced dual-fuel system provides flexible, safe, and efficient switching, with LPG as a clean, eco-friendly, and cost-effective fuel option. This system adapts easily to various environments and budget considerations.
Seat (Optional)
Equipped with an OPS system and ergonomic adjustments, offering multiple settings to reduce operator fatigue and enhance comfort during extended use.
Mast (Optional)
Features 2-3 stage standard masts and multi-stage full free lift masts, providing high levels of customization to accommodate various operational requirements.
Load-Backrest
Designed to prevent cargo from slipping, this feature enhances safety during operation.
Control System (Optional)
The integrated dashboard, combined with an ergonomically designed steering wheel, throttle, and brake controls, ensures safe, convenient, and comfortable operation.
Overhead Guard
Designed to prioritize driver safety, it also supports customization options for increased width and height to meet specific operational needs.
Control Valve
Thoughtfully designed, this control valve offers simple operation and customizable options to meet a variety of needs.
Air Filter & Air Tank
The air filter effectively removes impurities from the air, improving engine efficiency and extending its lifespan. The air tank is constructed from high-strength, corrosion-resistant steel, providing excellent sealing and enhanced safety.
Storage Compartment
Designed for convenient access, this compartment is perfect for holding small items like water bottles, documents, and pens.
| Model | | | | | | |||
| Characteristics | Power | Gasoline/LPG | ||||||
| Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 | ||
| Load Centre | mm | 500 | 500 | 500 | 500 | 500 | ||
| Lift Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Min. Turning Radius | mm | 2240 | 2240 | 2445 | 2495 | 2530 | ||
| Performance | Travel Speed | Load | km/h | 17 | 17 | 18 | 18 | 18 |
| Lift Speed | Load | mm/s | 550 | 550 | 450 | 450 | 380 | |
| Dimensions | Total Width | mm | 1150 | 1150 | 1225 | 1225 | 1365 | |
| Max. Height | mm | 4220 | 4220 | 4265 | 4265 | 4265 | ||
| Mast Height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| Chassis | Tyre | Front | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-12PR | 28×9-15-12PR | 250-15-16PR | |
| Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | |||
| Wheelbase | mm | 1600 | 1600 | 1700 | 1700 | 1800 | ||
| Service Weight | No load | kg | 3330 | 3670 | 4380 | 4780 | 5050 | |
| Power | Engine | Model | Isuzu C240 | Xinchai C490 | Isuzu C240 | Mitsubishi S4S | Isuzu 4JG2 | |
| Rated power | kW/r.p.m | 34.3/2500 | 36.8/2650 | 34.3/2500 | 35.4/2250 | 44.8/2450 | ||
| Rated torque | Nm/r.p.m | 138/1800 | 160/1800 | 138/1800 | 170/1700 | 186/1800 | ||
| Cylinders | 4 | 4 | 4 | 4 | 4 | |||
-
