SHOCII Medical Imaging

Mobile surgical C-arm system for providing real-time fluoroscopic X-ray imaging

The image intensifier C-arm machine gives you stable, high-quality imaging while minimizing radiation exposure. Equipped with a high-frequency, high-voltage generator and inverter, it ensures smooth performance and reliable operation in surgical settings. The 10.4-inch LCD touchscreen control panel is easy to use, rotates 180 degrees, and resists oxidation, while fault messages are displayed in Chinese to help streamline diagnostics.

With pulse and boost fluoroscopy, you get sharp, detailed imaging for precise diagnoses and surgical accuracy. The steering handle allows quick directional adjustments and smooth movement, while the line-blocking wheel prevents accidental shifts for added safety. A large 800mm arc space gives you more room to maneuver during procedures.

Designed for efficiency and flexibility, this system features triple-field imaging (9-inch, 6-inch, 4.5-inch) for better local diagnostics and a 360-degree rotating CCD camera for comprehensive imaging. The Korean linear guide rails ensure smooth mobility, and Omron relays reduce noise and extend the machine’s lifespan.

Specifications

HF generator
120 kV, 5 kW, 40 kHz

Fluoroscopy mode
  • Fluoroscopy mode 40-120 kV 0.5-5 mA (kV manual and automatic);
  • Pulsed fluoroscopy 40-120 kV 0,5-5 mA
  • Boost fluoroscopy 40-120 kV 5-10 mA
  • Photography 40-120 kV 1-250 mAs
X ray tube
  • Dual-focus fixed anode: 0.3 mm / 0.6 mm
  • Italy IMD Technology

Image intensifier
Three fields of vision 9, 6, 4.5 Japan Canon Brand

CCD camera
Japanese Watt Brand, 360° rotation

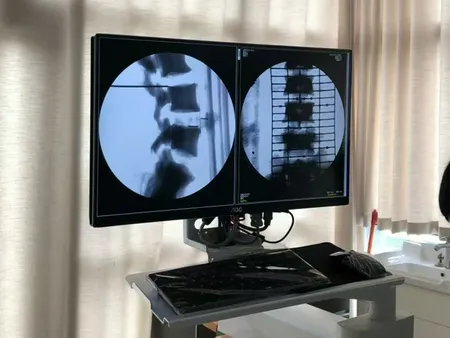

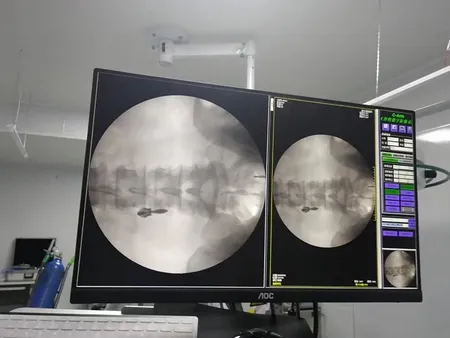

Image system
  • 5 Degree recursive Noise Reduction
  • Frame freezing
  • Thousands of image data storage
  • Image conversing and rotating
  • Screen display with image comparison
  • Support “one click” print, print the image report
  • Equip with Dicom 3.0 network port(optional)
  • Support Dicom 3.0standard data export function
Mechanical motion specifications
  • Vertical travel: 0-400 mm
  • Horizontal travel: 0-200 mm
  • Rotation about horizontal axis: ±180°
C-arm dimension
  • Distance of focal spot to image generator (SID): 1000mm
  • Depth in arm ≥ 650 mm Mobile stand: 1800×800×1850 mm
  • Image system: 750×530×1680 mm
Standard configuration
  • High resolution CCD camera: 1set
  • X-ray generator: 1set
  • 9” image intensifier: 1 set
  • Image processor
  • Dell brand 24'' LCD high definition display 1 set
  • Mobile stand: 1 set
Applications

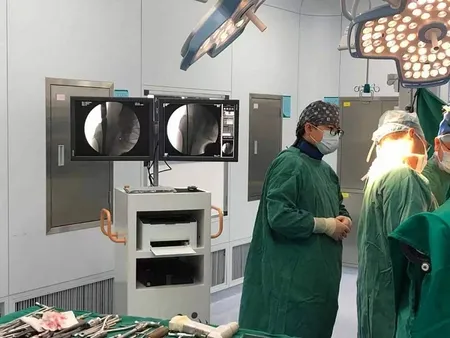

The image intensifier C-arm plays a critical role across multiple medical departments and surgical procedures. It is widely used in operating rooms, X-ray rooms, emergency departments, and interventional and peripheral vascular angiography units. Its applications extend to general surgery, urology, thoracic surgery, trauma surgery, spinal surgery, abdominal surgery, and orthopedics. It is an essential tool for fracture fixation, endoscopic examinations, surgical interventions, disc angiography, and vascular procedures such as angioplasty.

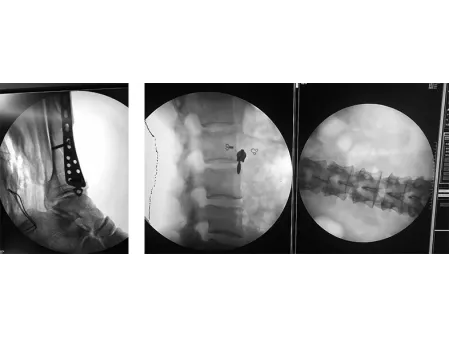

X-Ray Imaging

Looking for a high-performance C-arm system to improve precision in your surgical procedures? Contact us today to find the best solution for your facility!
